Calibre Rails

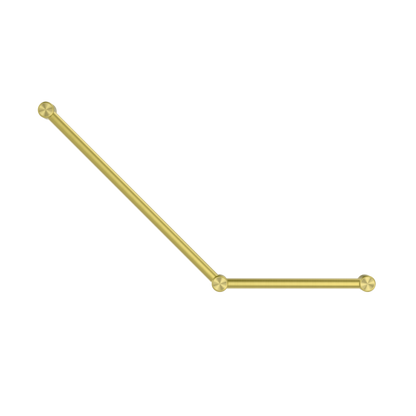

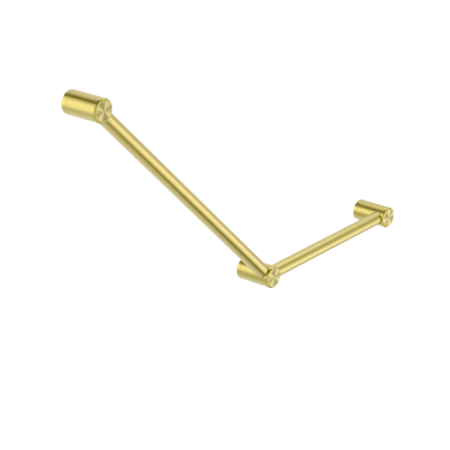

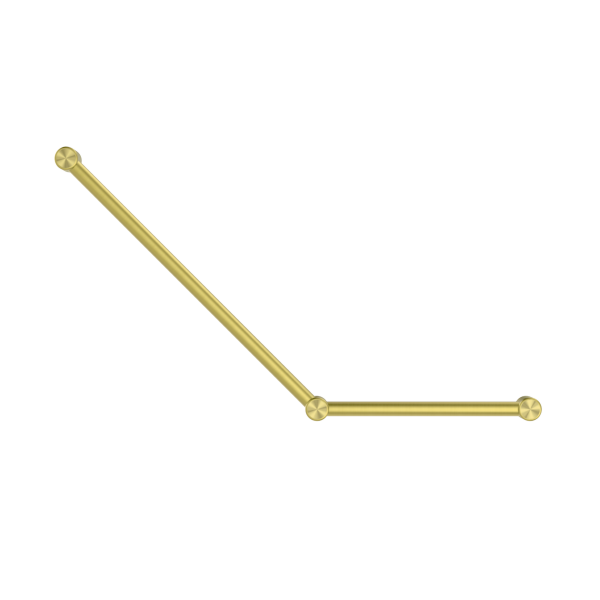

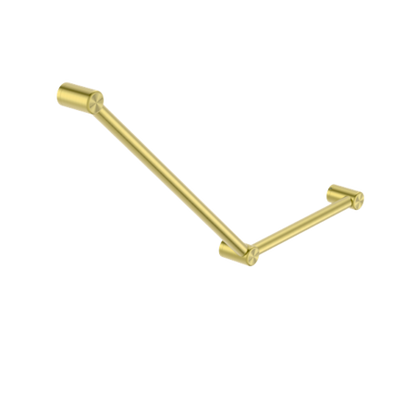

Calibre Terra 32mm AS1428.1 Ambulant Toilet Grab Rail 45 Degree 450x750mm Angled Rail Organic Brushed Brass Living (Made to Order) - R01A445BBL

$599.00
$599 $599
Sale Sold out
Tax included. Shipping calculated at checkout.
Finish: O Brushed Brass Coated
Calibre Mecca 32mm AS1428.1 Ambulant Toilet Grab Rail 45 Degree 750x450mm Brushed Nickel - NRCR3245ABN
brushed nickel
Calibre Terra 32mm AS1428.1 Ambulant Toilet Grab Rail 45 Degree 450x750mm Angled Rail Organic Brushed Brass Living (Made to Order) - R01A445BBL
O Brushed Brass Coated
SHOW MORE
SHOW LESS
Finish: O Brushed Brass Coated
Calibre Terra 32mm AS1428.1 Ambulant Toilet Grab Rail 45 Degree 450x750mm Angled Rail Organic Brushed Brass Living (Made to Order) - R01A445BBL
O Brushed Brass Coated
...
Calibre Mecca 32mm AS1428.1 Ambulant Toilet Grab Rail 45 Degree 750x450mm Brushed Nickel - NRCR3245ABN
brushed nickel
Calibre Terra 32mm AS1428.1 Ambulant Toilet Grab Rail 45 Degree 450x750mm Angled Rail Organic Brushed Brass Living (Made to Order) - R01A445BBL
O Brushed Brass Coated
Calibre Terra 32mm AS1428.1 Ambulant Toilet Grab Rail 45 Degree 450x750mm Angled Rail Organic Brass Aged Medium Living (Made to Order) - R01A445AB
Aged Brass Medium
Calibre Mecca 32mm AS1428.1 Ambulant Toilet Grab Rail 45 Degree 750x450mm Matte Black - NRCR3245AMB
matt black
Calibre Mecca 32mm AS1428.1 Ambulant Toilet Grab Rail 45 Degree 750x450mm Gun Metal - NRCR3245AGM
gun metal
Calibre Mecca 32mm AS1428.1 Ambulant Toilet Grab Rail 45 Degree 750x450mm Chrome - NRCR3245ACH
chrome
Calibre Mecca 32mm AS1428.1 Ambulant Toilet Grab Rail 45 Degree 750x450mm Brushed Bronze - NRCR3245ABZ
brushed bronze
Calibre Mecca 32mm AS1428.1 Ambulant Toilet Grab Rail 45 Degree 750x450mm Brushed Gold - NRCR3245ABG
brushed gold
Are you a trade member? Sign in for trade orders.

Need a Quote?

Generate a quote for this product by adding your email below OR generate a quote based on all items in your cart


Create Quote

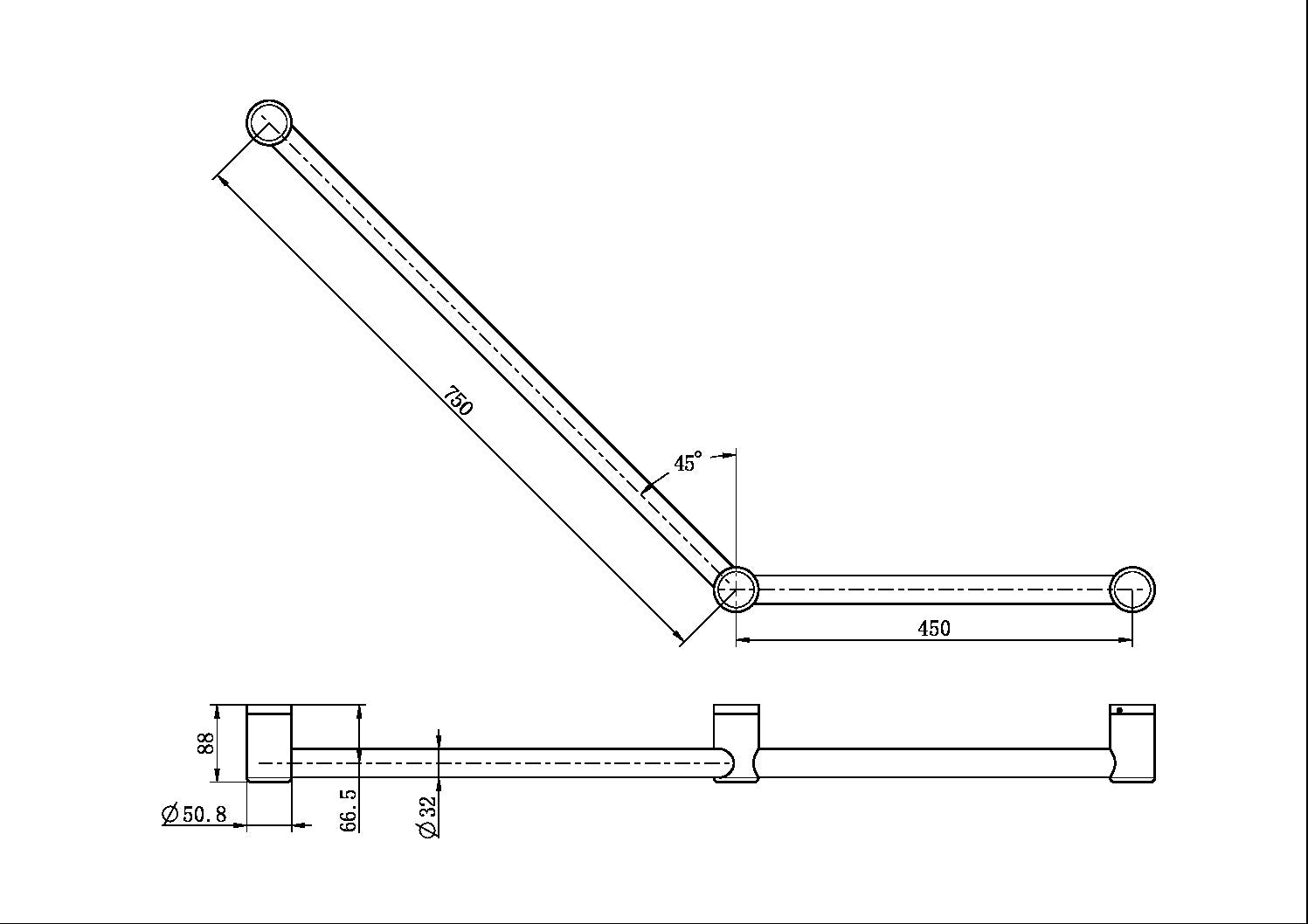

  • 450 Horizontal x 750mm Angled Rail
  • AS1428.1 Approved for Ambulant Toilets
  • 150kg Capacity
View full details

Description

  • These Calibre Angled Ambulant rails are suitable for public bathrooms requiring ambulant toilet cubicles or for private homes.
  • Angled rails can be used by the toilet or in the shower to help get on and off the toilet or from a shower seat
  • Australian Made, Owned and Designed
  • Can be mounted on left or right hand side
  • The 90 degree rail is 450x450mm, the 45 degree is 450mm Horizontal x 650 Angled. These dimensions are the correct size according to AS1428.1 for ambulant toilets
  • Independently tested and approved to AS1428.1 as per NCC requirements - Reports available on request
  • Grab rail has passage of the hand for the full 360 degree of horizontal and angled or vertical sections of the rail as per AS1428.1 requirements
  • Optional add on toilet roll holder attaches to the 32mm rail
  • Available in a range of finishes
  • Modular design, the rail to be mounted horizontally, vertically or at any angle and cut down to suit your bathroom
  • 150 kg capacity for all 32mm diameter calibre grab rails
  • Style up your accessible bathroom with Avail, we can customize our products to suit you.
  • If you have any questions or feedback please do not hesitate to contact us.

Assembly and CAD

Installation Guide Calibre Terra 32mm AS1428.1 Ambulant Toilet Grab Rail Angled Rail

Download

3D CAD BIM Calibre Terra 32mm AS1428.1 Ambulant Toilet Grab Rail 45 Degree 450x750mm Angled Rail

Download

Install Advice
