Calibre Rails

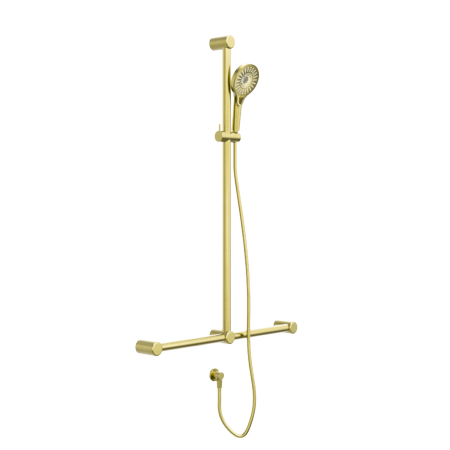

Calibre Terra 32mm DDA T-Bar Grab Rail 1100x750mm Adjustable Shower Set with Slider Organic Brushed Brass Living (Made to Order)- R01S117TBBL

Regular price $1,099.00
Regular price $1,099 Sale price $1,099
Sale Sold out
Tax included. Shipping calculated at checkout.
Are you a trade member? Sign in for trade orders.

Need a Quote?

Generate a quote for this product by adding your email below OR generate a quote based on all items in your cart


Create Quote

  • Avail natural coatings last a lifetime without ever chipping or flaking. You can repolish them again and again to bring back the original shine.
  • Living brass is a raw brass that will change over time and will react to different soaps and cleaning products. For a finish that will stay consistent consider our PVD colours like Brushed Gold, Brushed Bronze and Gun Metal.
  • 1100x750 grab rail set, Shower set including: multifunction 3 star 9 litre per min hand shower head Lic 1632, 32 mm adjustable rail slider, wall outlet, 1.5m hose
  • 32mm Diameter Rails
  • Horizontal rail can be offset from vertical during installation for left or right hand
  • Flow Rate: 3 Star 9L/min
  • AS1428.1 Approved, 150kg Capacity
View full details

Description

The Calibre Shower T Bar Rail set rail allows you to hold on and keep stable as you shower.

The Set Includes:

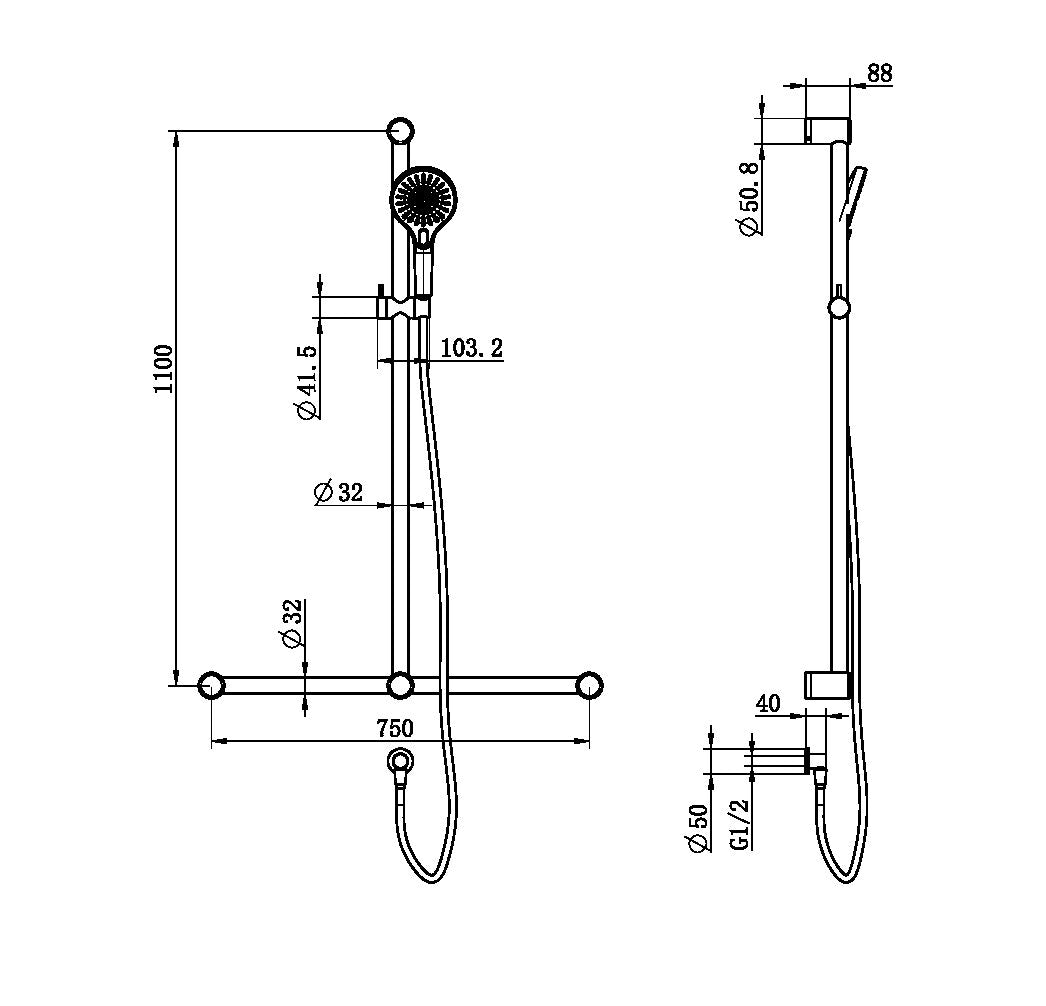

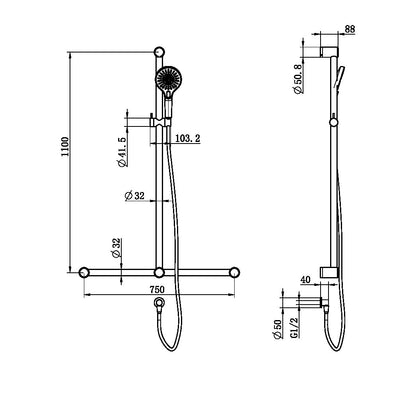

  • The 32mm diameter x 1100 vertical x 750mm horizontal Calibre rail can be cut down to any length during installation
  • Avail natural coatings last a lifetime without ever chipping or flaking. You can repolish them again and again to bring back the original shine.
  • Living brass is a raw brass that will change over time and will react to different soaps and cleaning products. For a finish that will stay consistent consider our PVD colours like Brushed Gold, Brushed Bronze and Gun Metal.
  • Independently tested and approved to AS1428.1 for grab rails by a NATA accredited Australian test lab
  • These dimensions are the correct size according to AS1428.1 for public wheelchair accessible showers
  • The T Bar bracket allows the vertical to slide along the horizontal to be offset at any position during installation
  • Adjustable 7.5 Litres Per minute push button shower head with multiple settings including soft, pulsating and bubble spray.
  • Wels 4 Star Rating, Rego: S11001
  • Simple push button or twist action adjustment for shower head height
  • 1.5m Flexi Shower Hose
  • Wall water outlet included (option outlet with holder available on request)
  • Mounting brackets and wall screws
  • 150kg capacity on the rail
  • Additional options include: Soap Basket, 1200mm rail, 2m Flexi Shower Hose
  • Available in a range of finishes

Assembly and CAD

Installation Guide Calibre Terra 32mm DDA T-Bar Grab Rail 1100x750mm + Adjustable Shower Set and Slider

Download

3D CAD BIM Calibre Terra 32mm DDA T-Bar Grab Rail 1100x750mm Adjustable Shower Set with Slider

Download
