Lafeme Crawford Toilet And Bidet With In Wall Cistern, Button Panel And Remote Control - ST21

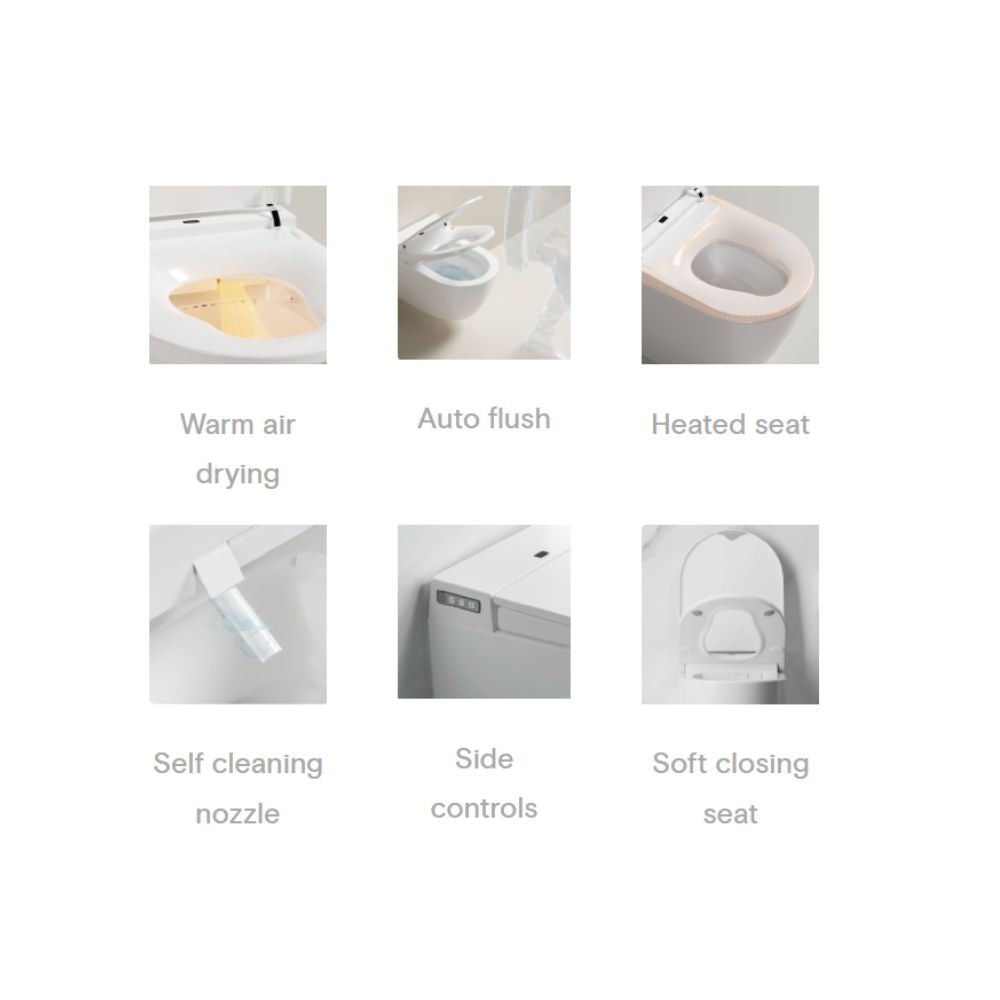

Crawford brings out that elegant flair to your bathroom room space effortlessly.

• Product Size: 592*400*424mm
• The Rated Power: 220V-240V, 50Hz
• Water Pressure: 0.07-0.75Mpa
• Maximum Power: 1600w
• WELS Star: 4.5/3L
• WELS Registration No. L07501
• Water Consumption: 3.3
• Waterproofing grade: IPX4
• Trap Type: P Trap 180mm, S Trap 95-115mm(included), S Trap 70 90mm(Sold Separately)
• This Model includes air-gap assessed and found to comply with the requirements of AS 2845.2:2010.
• No further BACKFLOW PREVENTION is required for this connection to water supply

Product Installation:

1. Fix the water tank frame with the outlet hose,
power line and induction line exposed.
Exposed size as the left ( as for water tank frame
installation, please refer to accordingly manual).

2. Connect the 1/2" thread in the side of the cistern to a 1/2" BSP wall elbow at the rough in position for water supply. Take out the textile pipe from the accessory box and connect it with the outlet pipe of the water tank for water supply

3. Open the lid and use a tool to remove the decorative screw caps (A new pair is in the spare part box). Use screwdriver to undo the screws. Take out the electronic seat and cover and put them in a clean place.

4. Take out the drain pipe fitting group, and select the appropriate drain pipe fitting according to the actual pit distance L of the drain pipe.

5. Match the length of the sewage pipe with the ceramic, and cut the excess pipe length.

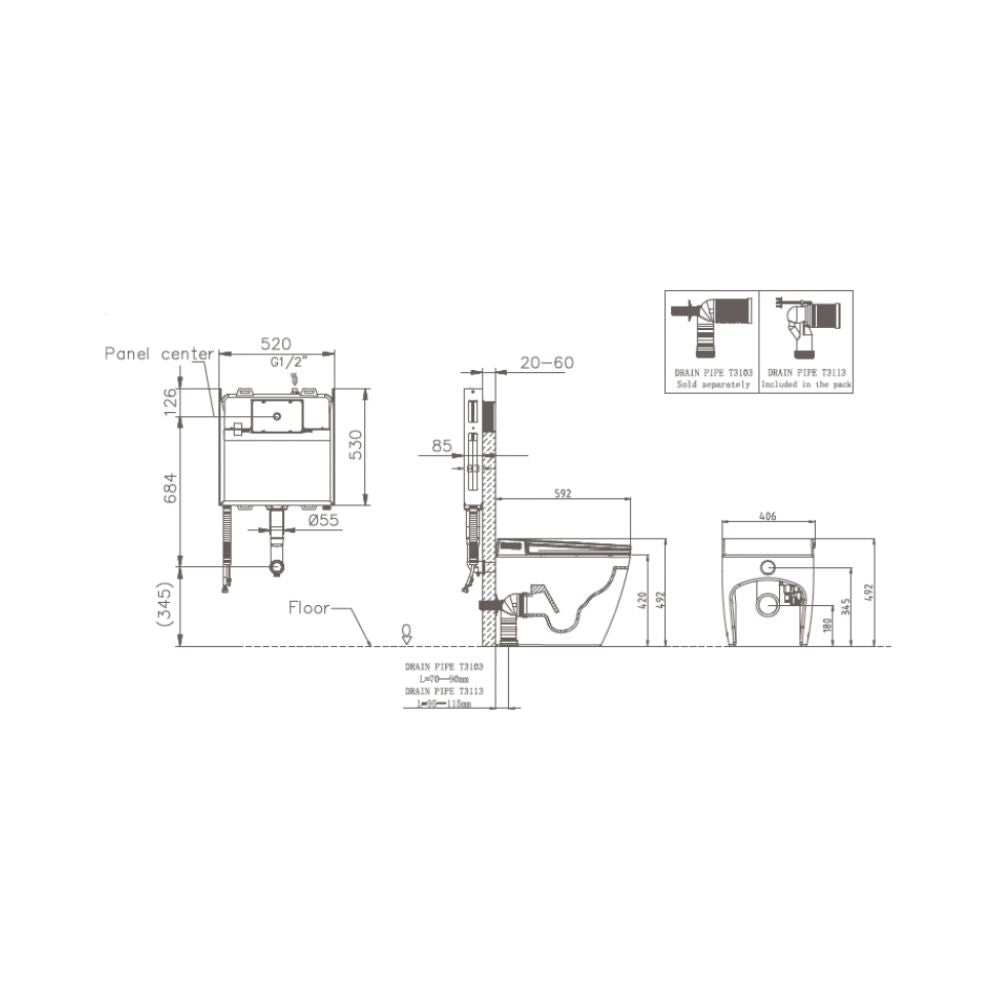

6. Install the drain pipe fitting group according to the size and height shown in the figure, and fix it with the wall with bolts

7. Firstly, punch two holes on the floor as shown above, and then fix the plastic expansion pipe to the floor. The outlet pipe and power cord penetrate into
the toilet from the back of the toilet. The flushing holes and drainage holes of the toilet are aligned to the corresponding position, and the toilet moves slowly to the arrow direction and sticks to the wall.

8. Put the ceramic fixed components into the ceramic
O-shaped hole, lock the small screws and fixing plugs with the ceramic fixed components from the ceramic side, then lock the large fastening screws with the reserved holes on the ground from the ceramic side, and finally the decorative cap is put on the back sleeve.

9. The toilet is fixed and then drained.

10. Connect outlet hose, power line and induction
line from the ceramic to each part of the seat. Attach outlet water hose and power line to toilet. Note: Users need to open the waterproof connector to check if correctly connect to the power line.

11. Put the toilet seats set on the top of ceramic body
and then open the upper cover, fastened by fixing screws and then put the decorative caps.

12. When the installation is completed, the remote controller is installed in an appropriate position.
