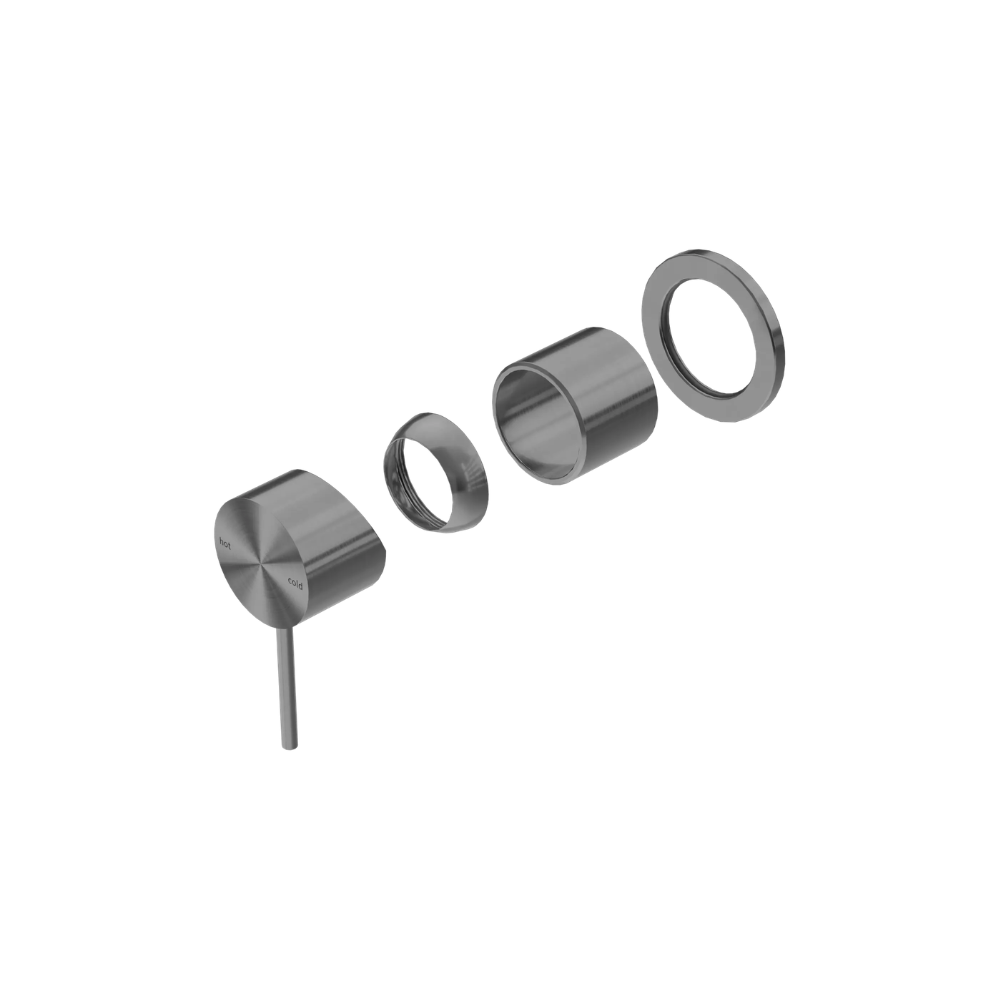

Mecca Shower Mixer 60mm Plate Trim Kit Only Gun Metal - NR221911HTGM

• Metal wall plate construction for longetivity
• Combines with Premium 35mm Universal Shower Mixer Body Only - NRUB002P to create the combo of Mecca Shower Mixer 60mm Plate Matte Black - NR221911HMB

Install Advice:

Installation Instruction for Trim Kit Only:

1. Drill a φ50mm hole in the ceramic tile, then position it.
2. Undo the self-tapping screw, washer, plastic sleeve.
3. Insert the O ring to the dressing bell groove, and slide the dressing bell onto cartridge.
4. Apply waterproof treatment to the area.
5. Tighten the dressing ring on the dressing bell.
6. Slide the backplate onto the wall.
7. Attach the washer to the cartridge rod, position the handle, tighten it with a grub screw using an Allen key, and cap the grub screw hole.
