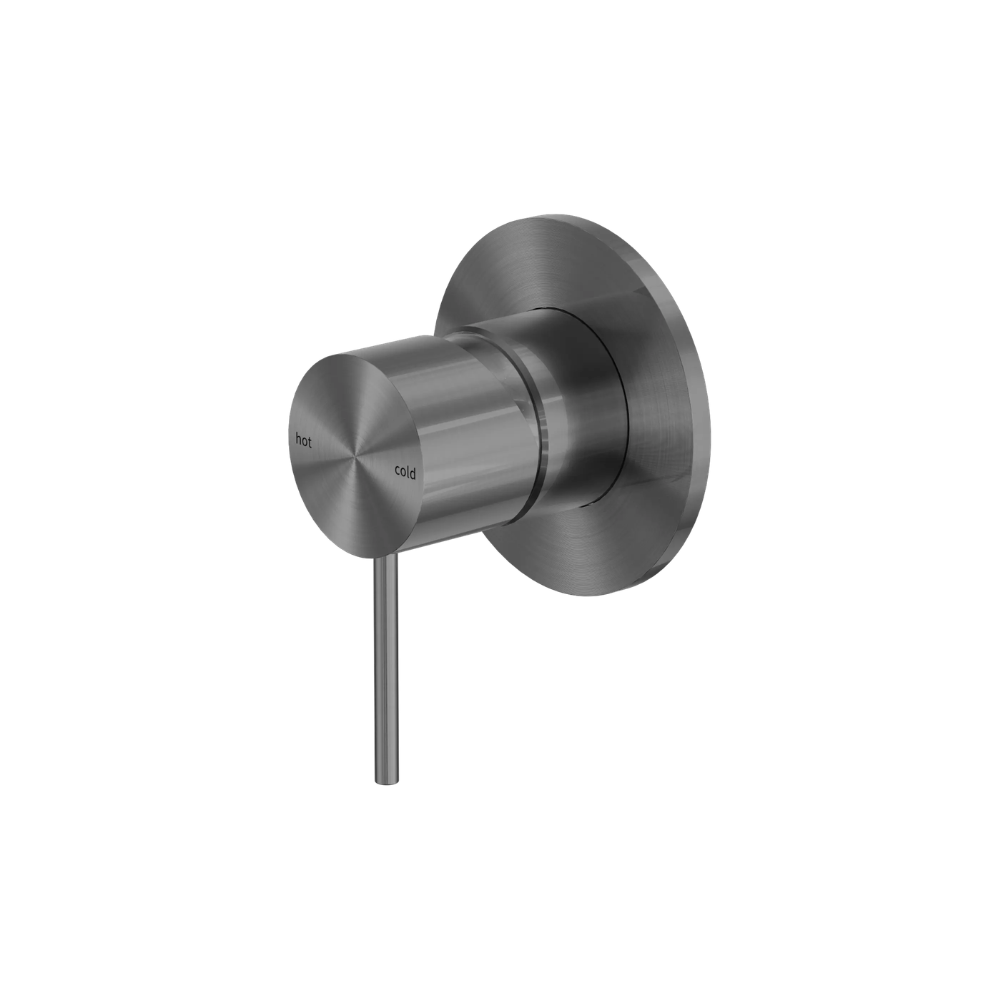

Mecca Shower Mixer 80mm Plate Gun Metal - NR221911GM

• 35mm ceramic cartridge can be adjusted to control water temperature and flow control setting, saving energy.
• Metal wall plate construction for longetivity
• Body inlets- 1/2 BSP female
• Suitable for mains pressure installation
• Wels rating not required
• Replaceable trim kits
• Packed Separately (Body and Trim Kit)

Install Advice:

Installation Instruction for Body Only:

1. Secure the mixer body to the nogging, ensuring an installation depth of 51-68mm from the nogging to the ceramic tile.
Note: Do not remove the plastic sleeve from the mixer body.
2. Connect the cold and hot water supply lines and perform a leak test.
3. Drill a Ø50mm hole in the plasterboard for mixer body installation, and then position the plasterboard.
4. Mark the plastic sleeve 4-7mm from the ceramic tile surface to the body and waterproof the gap between the plasterboard and body.
5. Remove the self-tapping screw, washer, and plastic sleeve, then cut the sleeve at the marked point.
6. Reattach the self-tapping screw, washer, and plastic sleeve.
7. Waterproof the gap between the plasterboard and body.

Installation Instruction for Body Only:

1. Drill a Ø50mm hole in the ceramic tile, then position it.
2. Undo the self-tapping screw, washer, plastic sleeve.
3. Insert the O ring to the dressing bell groove, and slide the dressing bell onto cartridge.
4. Apply waterproof treatment to the area.
5. Tighten the dressing ring on the dressing bell.
6. Slide the backplate onto the wall.
7. Attach the washer to the cartridge rod, position the handle, tighten it with a grub screw using an Allen key, and cap the grub screw hole.
