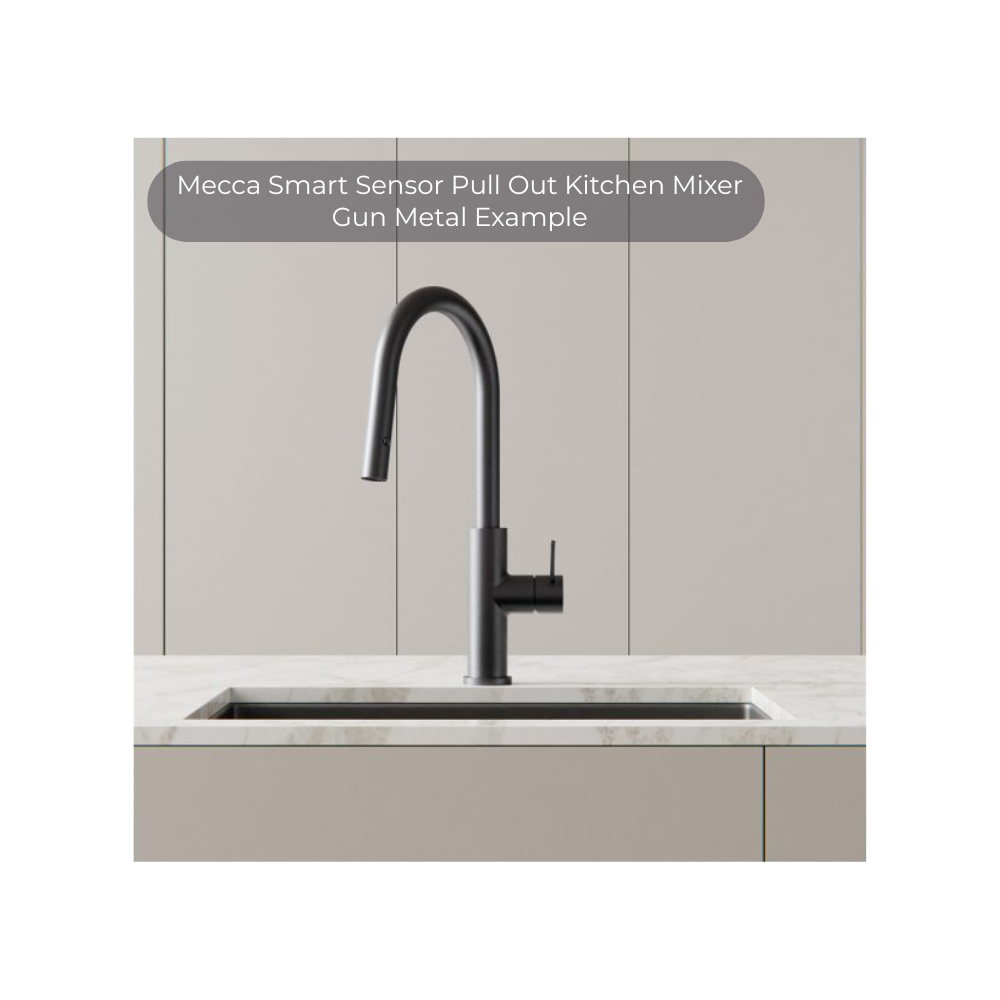

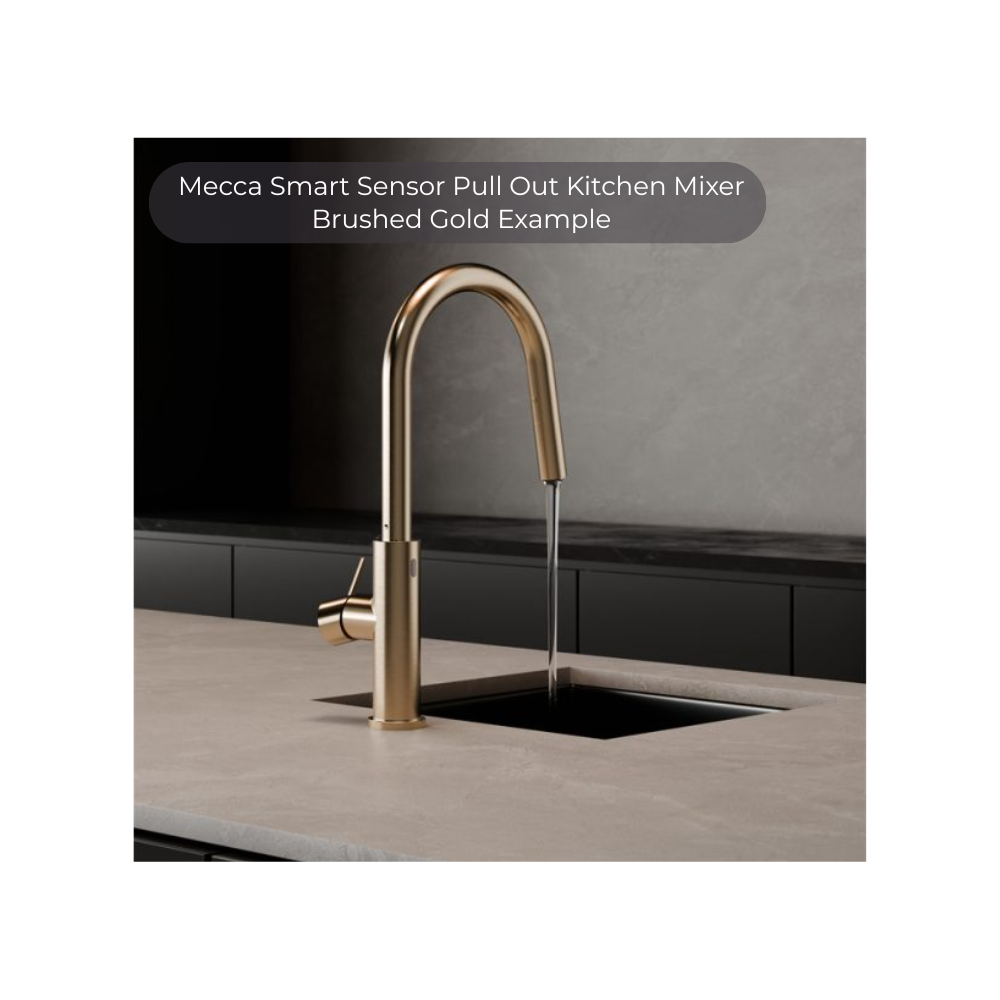

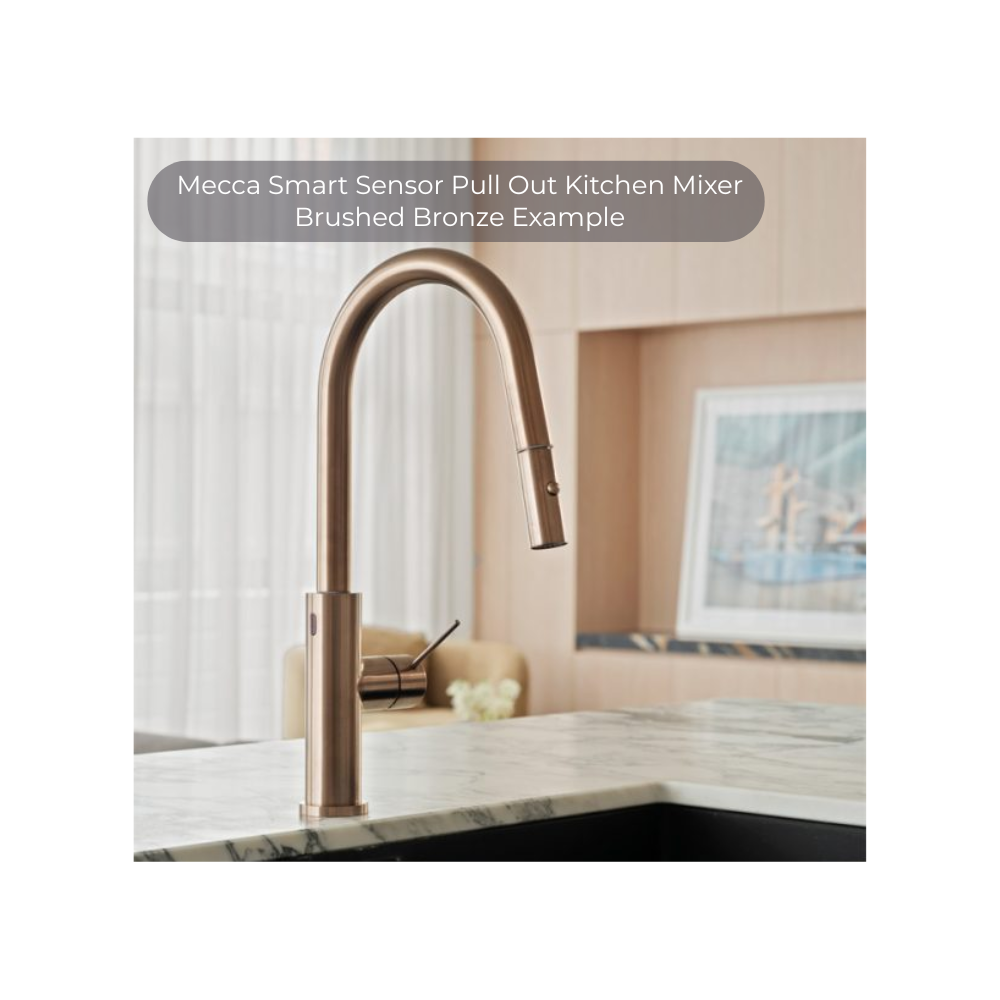

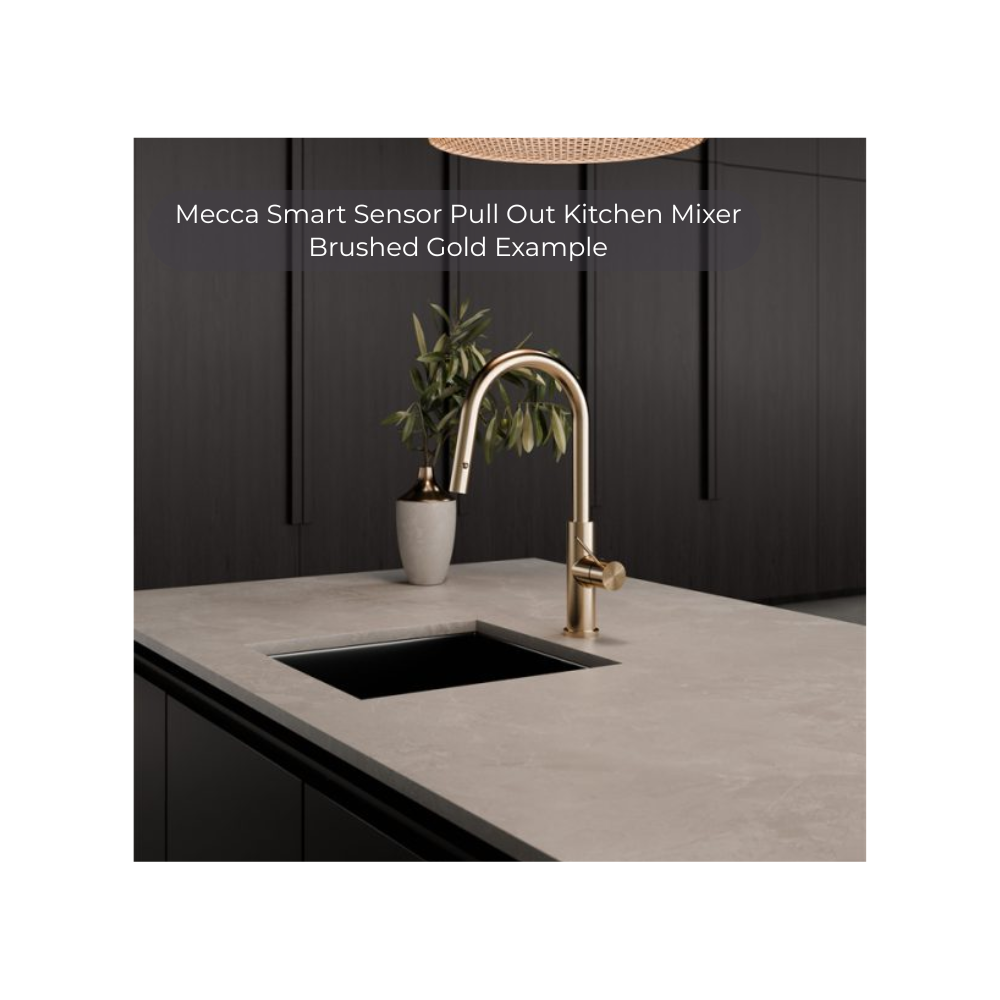

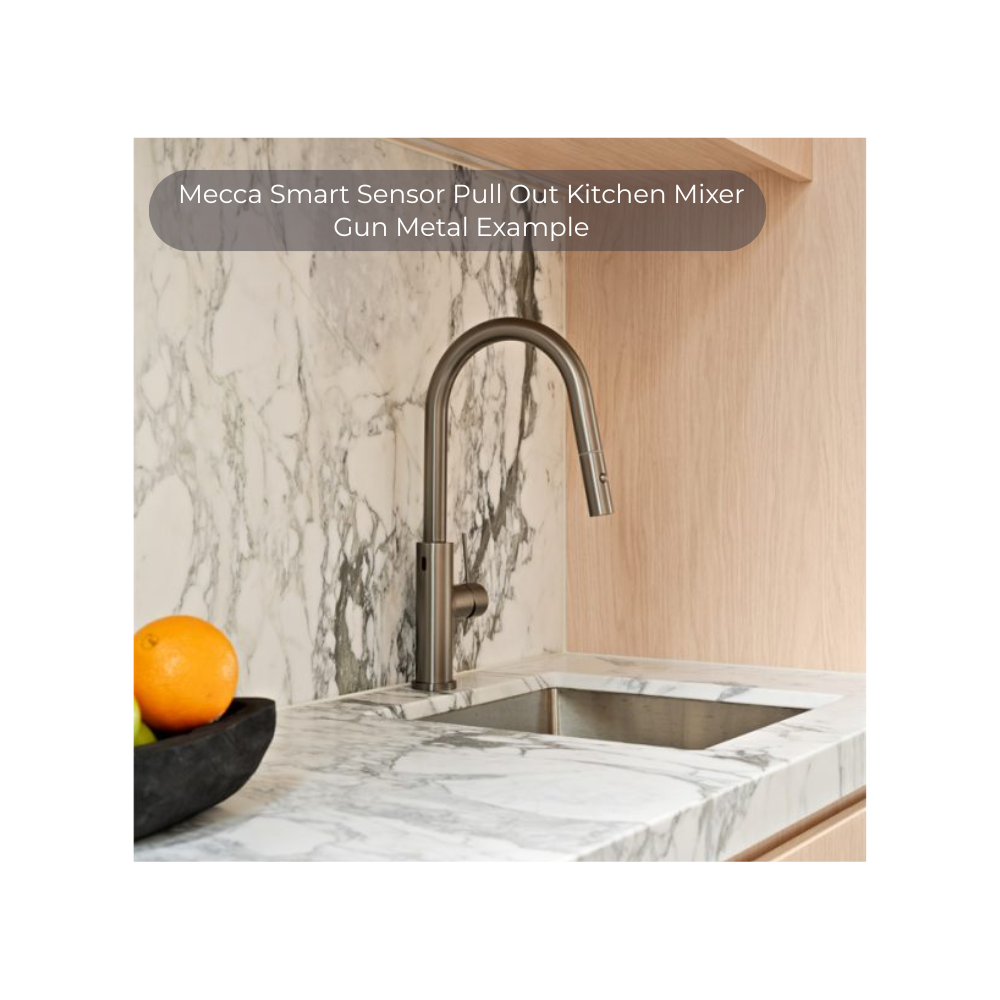

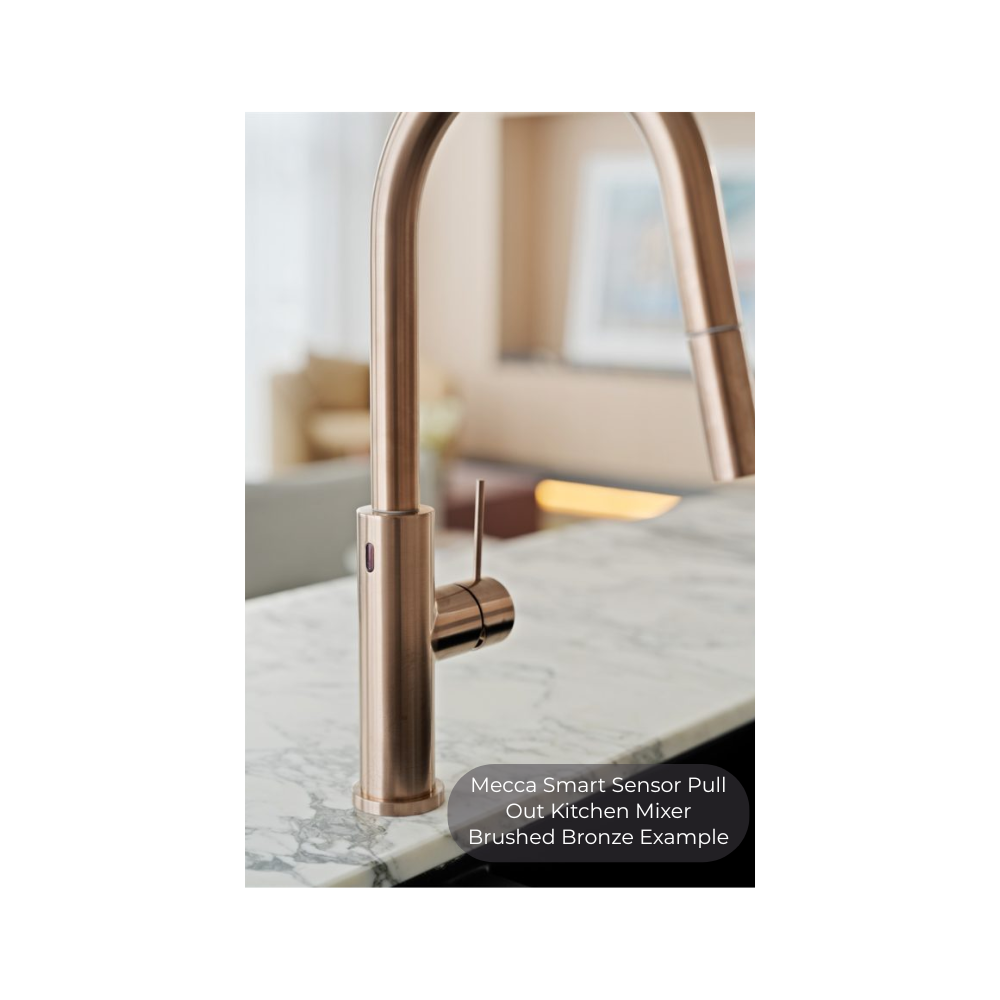

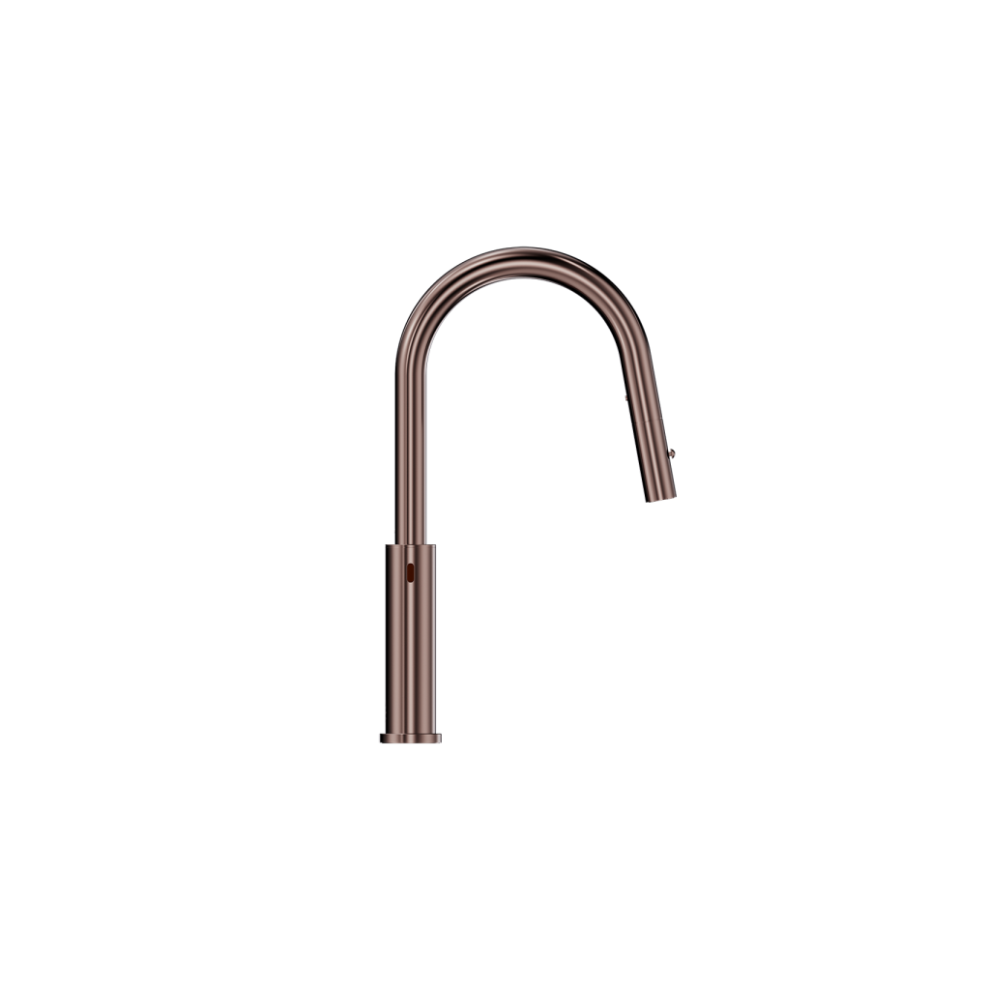

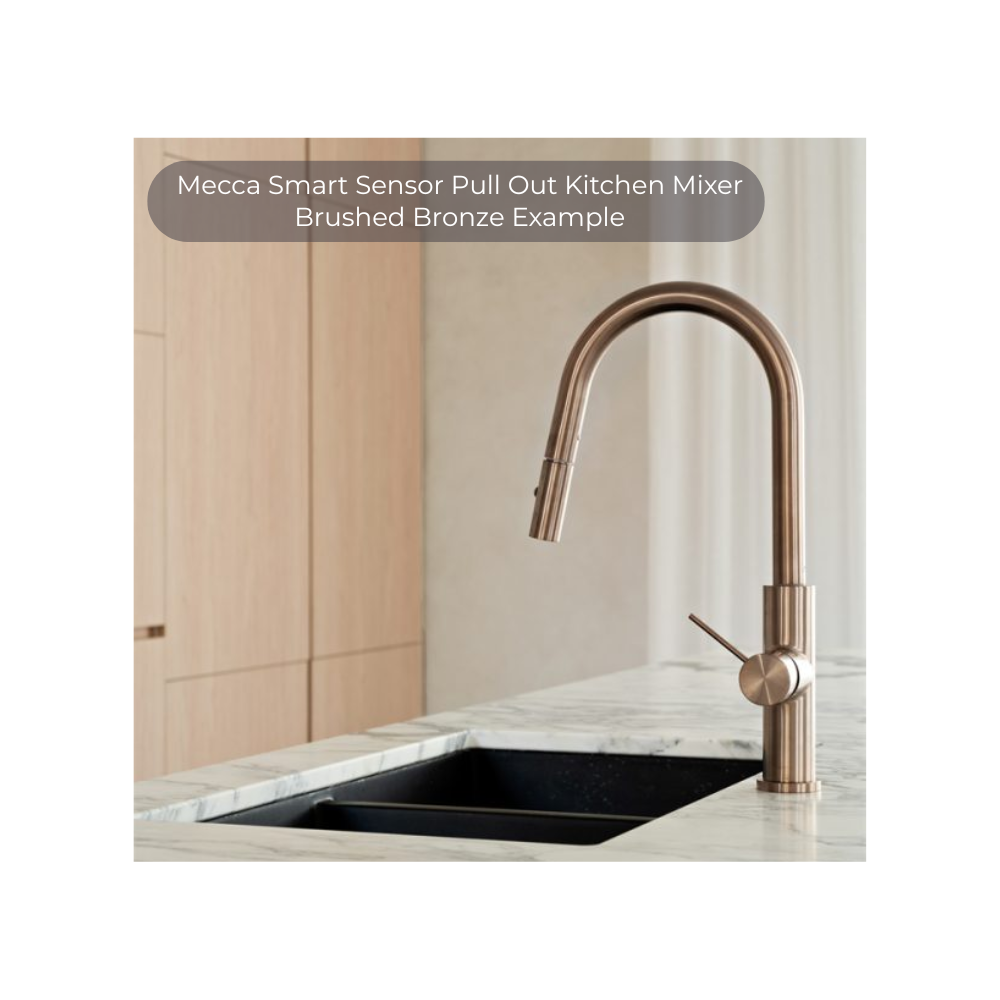

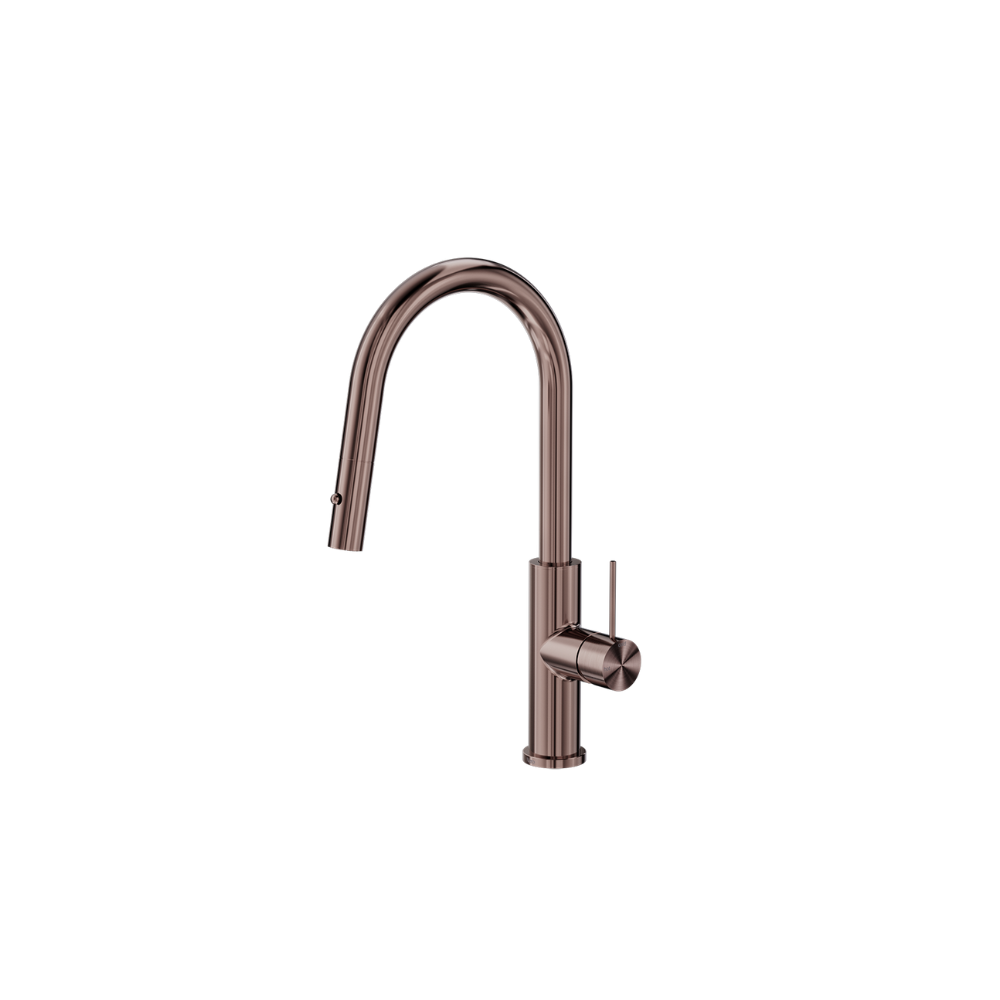

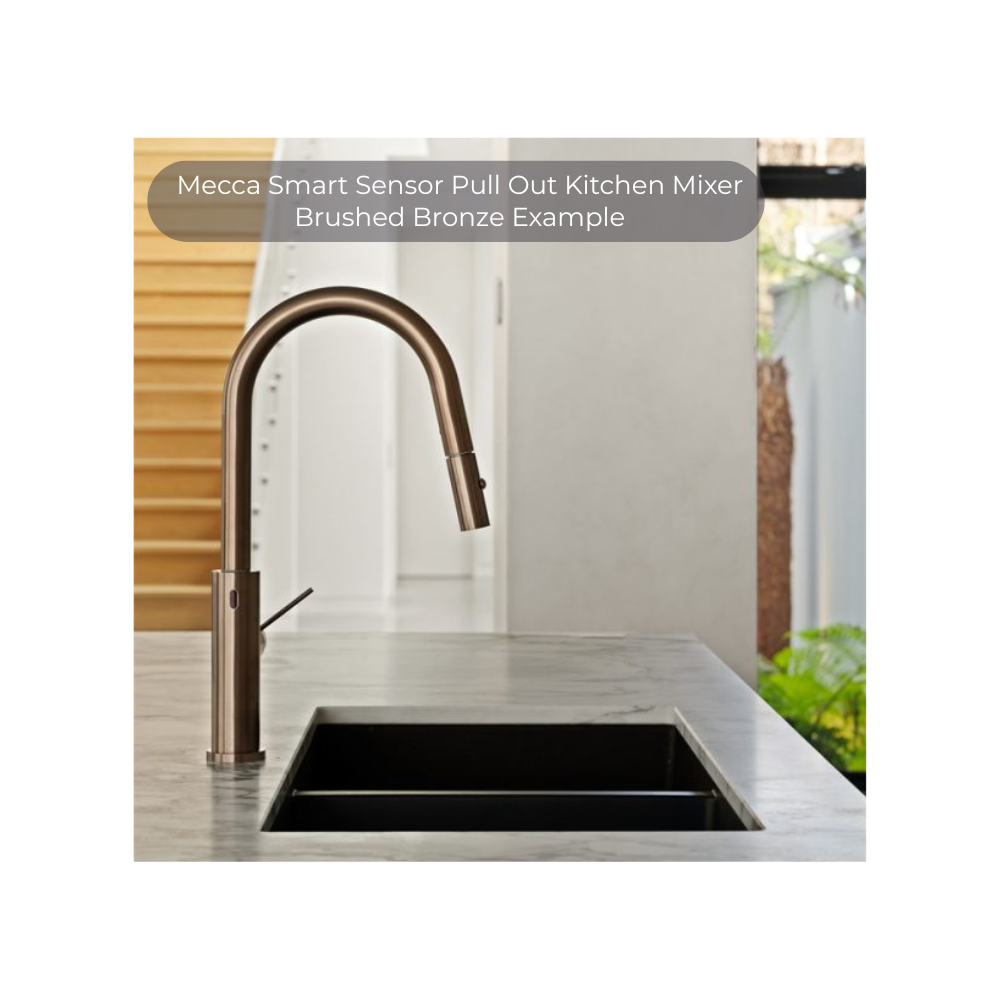

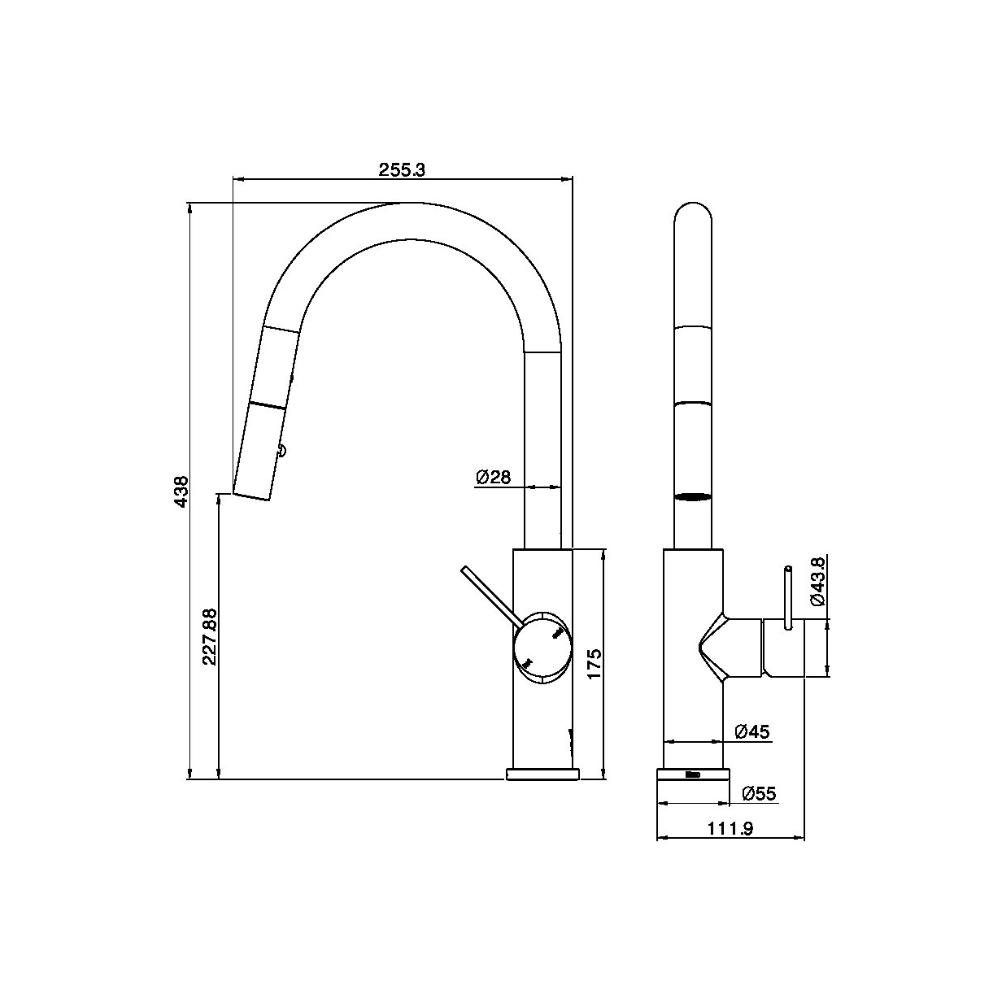

Mecca Smart Sensor Pull Out Kitchen Mixer Brushed Bronze - NR221908ABZ

• Material: Brass
• WELS Rating: 6 Star,4.5L/Min
• WELS Registration No: T45068
• Smart Sensor & Manual Control – Use touch-free sensor or traditional handle without interference.
• Pull-Out Function – Flexible spray for easy rinsing and cleaning.
• Low Lead DZR Brass – Durable, corrosion-resistant, and safe for drinking water.
• Rust-Resistant Braided Hose – Polyamide Braided PEX Hose ensures durability and prevents rust.
• Standard Battery-Powered – Ready to use with batteries included.
• Optional Power Adapter – Available for purchase separately for direct plug-in use.

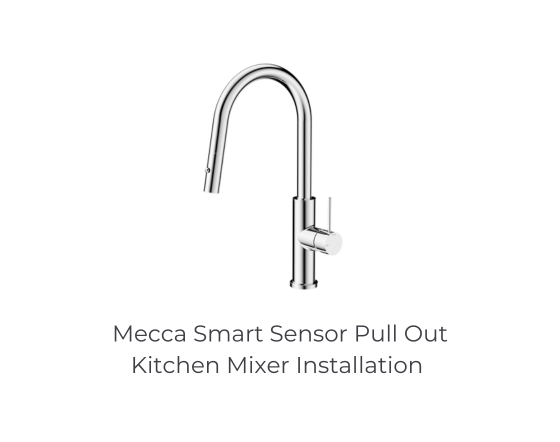

Installation Instruction for the Mixer:

1. Insert all 4 braided hoses through the mounting hole on the benchtop, ensure the diameter of the mounting hole > 35mm.

2. Slide the decorative ring and base gasket onto the M34 threaded pipe. Insert pull-out hose and sensor cable through the mounting hole.
Connect red/blue hoses to “H”/“C” inlets respectively.

3. Connect the small flexible hose to the smaller port, and the remaining hose to the other port.

4. Insert stabilizer, rubber washer, metal washer, and locking nut into the threaded pipe of the mixer from the underneath of the basin, and tighten the locking nut with Phillips screws to secure the mixer.

Installation Instruction for the Solenoid:

1. Drill 2 holes on the wall (Ø6mm, 60mm apart).
Insert expansion plugs, fix mounting bracket to wall with screws.

2. Clip the solenoid into the mounting bracket and ensure it is securely installed.

Installation Instruction for the Batteries:

1. On the left side of the solenoid, press the battery holder and rotate knob counterclockwise to eject.

2. The battery holder ejected.

3. Insert the batteries into the battery holder.

4. Reinsert the battery holder into the box until it clicks into place.

Installation Instruction for the Wirings:

1. Clip the mesh filters into the washers, them insert them into the nuts of red/blue hoses.
Connect hoses to the respective hot/cold angle valves and tighten.

2. Connect flexible hose and small flexible hose to G1/2 and G3/8 inlet ports on solenoid respectively and tighten them securely.

3. Connect pull-out hose to quick-connect port on solenoid.

4. Attach the counterweight to the pull-out hose.

5. Connect sensor cable to the plug of solenoid (ensure the arrows are aligned), tighten the nut on the plug to secure the connection.

6. Connect the power adapter to the solenoid power port.

Instructions for use:

Adjust the sensor range

1. Bring the magnet close to the sensor indicator light.

2. When the light blinks rapidly, hold your hand at the desired sensing range.

3. When the blinking stops, the new range is set.

Note: The magnet is not included in the package.

Function Introduction

• Rotate handle left/right to adjust water temperature.

• Lift or lower the handle to turn water ON/OFF.

• Pull out spray head extends ≤ 30cm for flexible cleaning.

• Swivel neck rotates 180°, 90° left and right.

• Sensor Activation:
When handle is OFF, wave once to turn ON, wave again to turn OFF.
Water auto shuts off after 30 seconds if no further motion is detected.
