Accessible Hand Shower Placement: Heights, Reach Zones and Rail Positions That Work

Accessible hand shower placement means mounting the slider rail, hose outlet and controls inside the user's seated or standing reach zone, typically 900mm to 1200mm above the floor, with the slider path kept clear of grab rail hand positions. Always confirm exact heights against AS 1428.1, NCC Livable Housing provisions and the user's own reach range.

Most articles on accessible bathrooms stop at "install a grab rail" and call it done. That advice is incomplete. A grab rail that's correctly rated and a hand shower that's technically compliant can still make a bathroom unusable if the two aren't coordinated with each other and with the person using them. Placement, not product selection, is usually what separates a shower that works from one that gets quietly avoided.

This guide is written for occupational therapists specifying modifications, builders and plumbers quoting the work, and families planning a shower for an ageing parent or a person using a mobility aid. It covers the planning decisions that need to happen before anyone picks up a drill: reach zones, hose length, rail coordination, and the mistakes that show up again and again on job sites.

Summary Table: Placement Elements at a Glance

The ranges below are general planning guidance only. Confirm exact dimensions against the current AS 1428.1, the NCC Livable Housing Design provisions and an individual OT assessment before ordering hardware.

Placement Element	General Planning Range	Why It Matters
Seated reach zone (forward/lateral)	Roughly 400mm-1200mm from floor	Defines where controls and outlet must sit to avoid overreaching
Slider rail travel	Roughly 1000mm-1800mm	Covers both seated and standing use on one rail
Hand shower outlet resting height	Roughly 900mm-1100mm for seated users	Keeps the handset within easy grip without lifting an arm overhead
Grab rail height	Commonly around 800mm-810mm	Matches typical horizontal rail guidance used across accessible fitouts
Hose length	Often 1.5m or longer	Reduces drag and gives a carer working room

Why Placement Decides Whether a Hand Shower Actually Works

The same hand shower can be excellent in one bathroom and unusable in the next, purely because of where it's mounted. Product quality matters far less than most people assume. Placement is what determines whether a person can actually complete the task of showering independently, or with the amount of assistance planned for.

A premium slider rail with a well-designed handset still fails if it's mounted 200mm too high for a seated user, or if the outlet sits directly behind where a shower seat gets installed. Builders and plumbers who quote accessible bathroom work sometimes treat the hand shower as a standard fixture install: pick a height, run the pipe, move on. That approach works for a standard family bathroom. It doesn't work here, because the margin for error is smaller and the consequence of getting it wrong is a person who can't use their own bathroom without help.

This is also why an OT assessment matters more than a product catalogue. Two people with similar mobility profiles can have very different reach ranges, grip strength and preferred transfer sides. A rail layout designed around "typical" wheelchair dimensions can still miss the mark for a specific individual. Placement decisions should follow the person, not a generic template.

The practical implication for anyone specifying or quoting this work: measure the person and the space together, before selecting hardware. Get the reach zone and transfer pattern confirmed first. Product selection comes after, not before.

Seated and Standing Reach Zones: Where the Slider and Outlet Should Sit

A seated user's comfortable reach zone typically runs from around 400mm to 1200mm above the floor, with forward reach more limited than lateral reach from a fixed seated position. The slider bracket, hose outlet and any diverter controls should fall inside this envelope, confirmed against AS 1428.1 and the specific user's reach range before installation.

Think of the reach zone as two overlapping shapes: a forward reach arc, limited by how far a seated person can lean without losing balance, and a lateral reach arc, usually larger because it doesn't require leaning past the base of support. A shower seat, a transfer bench and a wheelchair each create a slightly different version of this envelope, because seat height and depth change how far a person can extend an arm.

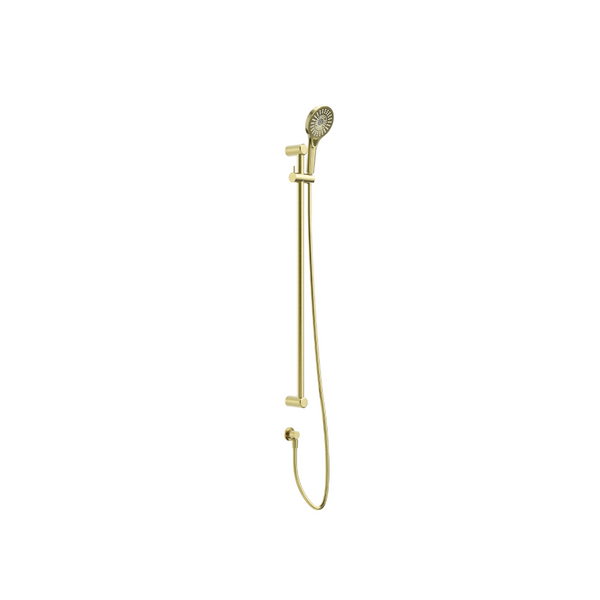

For a standing user, or a household where the bathroom needs to serve both a wheelchair user and a family member who showers standing, the slider rail needs enough vertical travel to cover both reach zones. This is one reason a full-length slider rail, rather than a fixed-height outlet, is usually the better hardware choice for a shared bathroom. It lets the handset move to suit whoever is using it, without a second fit-out.

The controls deserve the same attention as the outlet. A mixer or diverter mounted at standard height, around 1100mm-1200mm for a standing adult, can sit outside a seated user's forward reach entirely. If the person showering seated also needs to operate the temperature control independently, that control needs to move into the seated reach zone too, not stay at the standard trade height because it's faster to install.

AS 1428.1 (Design for access and mobility) and the NCC Livable Housing Design provisions both address reach ranges and fixture heights, but neither replaces an individual assessment. The standards set a compliance floor. An OT assessment sets the number that actually fits the person. When the two disagree, in either direction, the individual's measured reach range should generally take priority for a private residential job, with the standard used as the reference point for anything that needs to satisfy a building approval.

Hose Length, Drop and Drag: Getting the Cable Management Right

A longer hose, often 1.5 metres or more, gives both a seated user and a supporting carer more working room, but only if the drop point is planned so the hose doesn't loop into the floor waste or catch on the grab rail. Hose routing is a small detail with an outsized effect on daily usability.

A hose that's too short forces the user to reposition constantly, or forces a carer to lean awkwardly to keep the handset within reach. A hose that's too long, without a planned drop point, becomes its own hazard: it pools on the shower floor, drags across the floor waste, or wraps around a grab rail every time the handset is returned to its bracket.

The fix is straightforward but frequently skipped. Map the hose's natural hang path before finalising the slider bracket position. If the bracket sits directly above the floor waste, excess hose will drop straight into the drain area and create a trip and slip risk, particularly for a user transferring with a mobility aid. Offsetting the bracket slightly, or specifying a hose with a built-in stop or clip, resolves most of this.

For households supporting a carer, the extra hose length isn't a luxury. It's what allows the carer to stand at a comfortable angle, wash the person's back or legs without stretching, and avoid the handset pulling taut mid-task. This is a detail that rarely gets asked about at the quoting stage, which is exactly why it's worth raising before the job is priced, not after installation when the hose length is already fixed.

Coordinating the Hand Shower With Grab Rails

The hand shower slider and any grab rail need to be planned as one layout, not two separate installs, so the slider bracket never occupies the exact spot a hand needs to land for support. Getting this wrong creates a pinch point, or forces a compromise on hand position during a transfer.

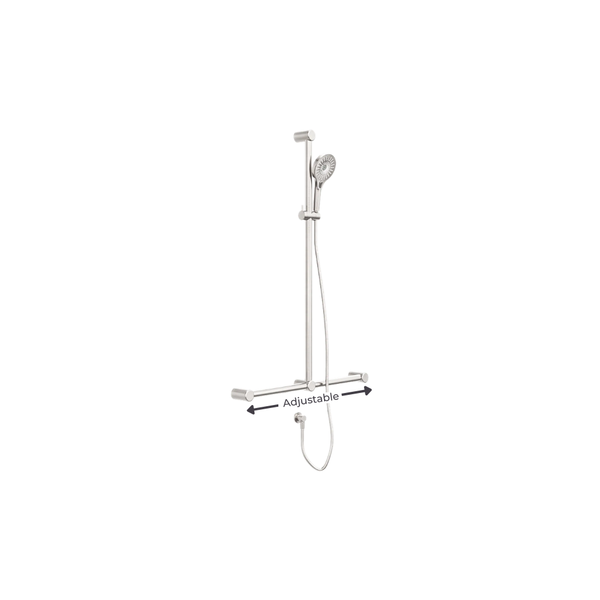

A T-bar or horizontal grab rail commonly sits around 800mm-810mm above the floor, a height range widely used across accessible fitouts. A hand shower slider rail often needs to run through or near that same height band to reach both seated and standing users. When the two rails are specified separately, without cross-checking against each other, the slider bracket or the parked handset can end up sitting exactly where the user's hand needs to grip during a transfer.

The practical fix is to lay both rails out on the same wall elevation drawing before either one is fixed. Mark the grab rail's full hand-contact zone, not just its centreline, and keep the slider's bracket and parking clips clear of that zone. Where a combined grab rail and shower rail system is being used, this coordination is largely built into the product, which is one reason combined systems are worth considering for bathrooms where wall space is tight or where a separate slider and rail can't be spaced far enough apart to avoid conflict.

Handing matters just as much as height. If the user transfers from their stronger side, the grab rail needs to sit on that side, and the hand shower controls should be reachable without crossing the body. A layout that's mirrored from a standard plan, rather than handed to the individual, can put the rail on the wrong side entirely. This is a five-minute check during planning that avoids a rail being unscrewed and remounted after installation.

Consider a scenario an OT might encounter during a post-installation review: a grab rail installed at a standard 800mm height, centred on the shower wall, works fine in isolation. But the client transfers from a wheelchair on the left, using their right arm for support because of reduced grip on the left. The rail, mounted centrally, sits too far from the transfer path to be useful, and the hand shower slider crosses directly through the space the client needs for their supporting arm. The fix isn't a different rail. It's repositioning the same rail closer to the transfer path and shifting the slider to the opposite side of the wall. This kind of rework is avoidable when the rail layout and the hand shower placement are planned together, against the individual's transfer pattern, before installation rather than after.

Common Placement Mistakes That Undo a Good Bathroom Design

Most placement failures come down to five recurring errors: a slider mounted too high for the intended user, an outlet positioned behind the shower seat instead of beside it, controls that are out of reach from the entry side, a rail installed before the user's needs were confirmed, and hardware handed to the wrong side of the body.

Mounting the slider too high is the most common, usually because the installer defaults to standard shower height rather than checking the seated reach zone first. An outlet placed behind the seat forces the user to twist to reach it, which defeats the purpose of a seated shower entirely. Controls positioned for someone entering the shower, rather than for someone already seated inside it, create a second problem: the person can turn the water on before sitting down, but can't adjust temperature once seated.

Installing the grab rail before the user's needs are confirmed is a sequencing error more than a placement error, but it produces the same outcome: rework. When a rail goes in based on a generic plan, then the OT assessment happens afterwards, the rail often needs to move. That's an avoidable cost if the assessment happens first.

Handing the layout to the wrong side is easy to miss on a plan drawing, because left and right look symmetrical on paper. It's not symmetrical for the user. A rail and hand shower configuration that ignores which side the person transfers from, or which arm has better grip strength, can pass every measurement check and still fail in practice.

Site-Measure Checklist Before You Order Hardware

Before ordering a slider rail, hand shower and grab rail, confirm the seated and standing reach range with the actual user or their OT, mark the transfer side and handing, check wall construction for load-bearing backing, plan the hose drop path, and cross-reference the grab rail's hand-contact zone against the slider's full travel range.

A practical checklist for the site visit:

• Confirm the user's seated reach zone, measured against their actual seat or wheelchair, not a generic figure.
• Identify the transfer side and which arm carries the user's weight or grip.
• Check the wall for solid blocking or structural backing capable of carrying rail loads. Plasterboard alone is not sufficient for either a grab rail or a slider rail; both need to be fixed into noggins, battens, or a certified backing system rated for the load.
• Map the hose's hang path from the proposed slider height to the floor, checking it clears the waste and the grab rail.
• Mark the grab rail's full hand-contact zone on the wall elevation, then check the slider's bracket and parking position against it.
• Confirm final heights against AS 1428.1, the NCC Livable Housing Design provisions, and the individual's OT report, in that order of specificity.
• Note whether the bathroom needs to serve more than one user with different reach ranges, and size the slider travel accordingly.

Why We Push Back on "Standard Height" Installs

At Avail Designs, the most common request we get isn't for a new rail or hand shower. It's a request to reposition one that was installed based on a standard measurement instead of the person using it. That pattern is worth naming directly, because it's avoidable, and it's the single biggest driver of rework we see in accessible bathroom projects.

The underlying issue is sequencing. Trades are often asked to quote and install before an OT assessment happens, or before anyone has measured the actual user's reach and transfer pattern. A rail goes in at a standard height because that's the only reference point available at the time. Then the assessment happens, and the rail has to move. That's a cost that lands on the client twice: once for the first install, once for the rework.

Our position is that placement should be treated as a design decision, not a plumbing default. That means getting the reach zone, transfer side and hose routing confirmed before hardware is selected, not after. It also means treating the grab rail and the hand shower as one coordinated layout rather than two separate line items on a quote. A slider rail chosen without reference to the grab rail's hand-contact zone is a coin flip on whether the two will clash.

We'd rather see a floor plan and a set of dimensions before a rail goes on a wall than help someone unpick a finished install. If you're an OT specifying a modification, a builder quoting the work, or a family planning a bathroom for an ageing parent or a person using a mobility aid, send us your bathroom dimensions or floor plan. We'll help you work through the reach zone, rail coordination and hose routing before anything is ordered, so the installation happens once.
