Direct Answer: A retrofit accessible shower kit combines a grab rail, a sliding shower rail, a hand shower and hose, and sometimes a seat bracket, fitted into an existing tiled shower without demolition. Correctly specified kits fix to solid wall backing, meet the intent of AS 1428.1 fixing requirements, and can usually be installed in a single day by a licensed installer.
Most bathrooms don't need a full renovation to become safer. They need the right hardware, fixed properly, in the right place. For an occupational therapist writing a home assessment, a builder quoting a small job, or a family member trying to keep a parent showering independently for another few years, a full strip-out is often overkill: expensive, slow, and disruptive to someone who is already vulnerable to falls.
This guide walks through what a retrofit accessible shower kit actually contains, how to assess an existing shower before ordering anything, how to choose between a straight rail, a T-bar and a combined grab rail and shower rail, and what has to happen behind the tile for any of it to be safe. It's written for people specifying real jobs, not browsing for inspiration.
Key takeaways
- A retrofit kit typically pairs a fixed grab rail with a sliding shower rail, hand shower, hose, and (where needed) a fold-down or wall-mounted seat.
- Wall substrate and backing matter more than the kit itself. A grab rail is only as strong as what it's screwed into.
- Configuration should follow the person's function: standing users, sitting users and transfer users need different rail shapes.
- AS 1428.1 sets dimensional and fixing intent for accessible fittings in Australia; it's the reference point OTs and builders should be working from.
- Most retrofits can be completed without re-tiling by reusing existing outlet points and fixing into studs or noggins located behind the existing tile.
- Falls in the bathroom are a well-documented cause of injury among older Australians, which is exactly why the fixing standard matters more than the finish.
Summary Table: Retrofit Kit Configurations at a Glance
| Configuration | Best suited to | Standing use | Seated/transfer use | Key consideration |
|---|---|---|---|---|
| Straight grab rail + separate shower rail | Users needing light support while standing | Yes | Limited | Two fixing points, more visible hardware |
| T-bar grab rail | Users who need a stable pivot point for turning or lowering | Yes | Yes | Versatile for sit-to-stand transfers |
| Combined grab rail and shower rail | Users wanting support and hand shower height adjustment in one fitting | Yes | Yes, with seat | Fewer wall penetrations, tidier finish |
| Grab rail with shower seat bracket | Users who shower seated | No | Yes | Seat and rail loads must both land on solid backing |
What a Retrofit Accessible Shower Kit Actually Includes
A retrofit accessible shower kit is a set of fittings designed to add support and usability to an existing shower recess without changing its structure. At minimum it includes a fixed grab rail rated for load-bearing use, a hand shower on a sliding or fixed bracket, and a hose. Many kits add a shower seat bracket.
The distinction that matters is between a grab rail and a towel rail or decorative rail. A decorative rail is designed to hold a towel's weight, nothing more. A grab rail is designed and fixed to be pulled on, leaned on, and used to arrest a fall. They can look similar from across the room. They are not interchangeable, and a home safety assessment should never treat them as such.

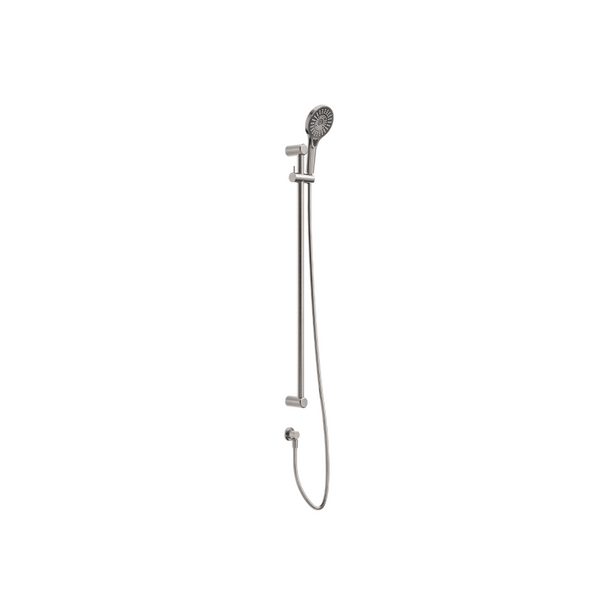

A combined grab rail and shower rail system takes this further by integrating the sliding hand shower bracket into the grab rail itself. The user gets a support rail and an adjustable-height hand shower mount in one fixed unit, rather than two separate fittings competing for wall space and fixing points. For a retrofit into an already-tiled wall, fewer fixing points is a genuine practical advantage, not just a tidier look. Avail Designs supplies combined grab rail and shower rail systems built specifically for this kind of upgrade, and the trade-offs between a combined unit and separate fittings are worth understanding in more depth in a dedicated comparison of combined grab rail and shower rail benefits.
A hand shower and rail kit rounds out the package. Handset shape, hose length and bracket height all affect whether the finished shower actually works for the person using it, which is covered later in this article.
Assessing the Existing Shower Before You Buy Anything
Before specifying a kit, check four things: tile and substrate condition, stud or noggin locations, existing outlet height, and any screen or hob obstacles. Get this wrong and even the best-specified kit will fail, either by pulling out of the wall or landing in the wrong spot for the user.
Start with the wall itself. Tiled walls over fibre cement sheet or plasterboard can support a grab rail, but only where the fixing lands on a stud or noggin behind the sheet, not on the sheet alone. Tiled walls over solid masonry or a mortar bed behave differently again, and generally offer more forgiving fixing options because the substrate itself can take load with the right anchor. An OT or builder doing a pre-purchase assessment should check for hollow-sounding tile (a sign of a cavity wall) and, where possible, sight the original wall framing plans or use a stud finder rated for use through tile.
Next, map where the studs and noggins actually sit. Bathroom walls are commonly framed at 450mm or 600mm centres, but noggins for towel rails, vanities or old fittings are rarely where a new grab rail needs to go. This is the single biggest reason retrofit jobs stall: the ideal rail position, based on the user's height and reach, doesn't line up with existing backing. Sometimes this means adding a noggin (a straightforward, non-structural job for a licensed builder), and sometimes it means adjusting the rail position slightly to land on what's already there.
Finally, check the existing outlet height and any screen or hob obstacles. Reusing the existing shower mixer outlet, rather than relocating plumbing, is usually what keeps a retrofit to a single day. A hob or fixed screen can also limit where a seat bracket or transfer rail can go, so measure clearances before ordering.
Choosing the Right Configuration for How the Person Actually Showers
The right configuration depends on whether the person stands, sits or transfers in and out of the shower. A standing user generally needs a straight or angled rail for light support. A sitting or transferring user needs a T-bar or combined rail positioned to support a pivot and lower.
A straight grab rail, angled slightly, suits someone who is steady on their feet but wants something to hold while soaping up, turning, or adjusting to water temperature. It's the simplest retrofit and the cheapest, but it does one job only.

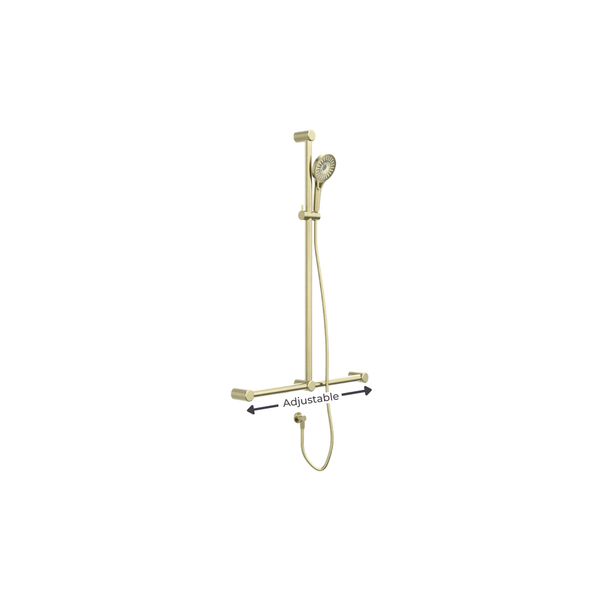

A T-bar grab rail gives a vertical and horizontal handhold in one fitting, which is useful for someone lowering onto a shower seat or pushing back up to standing. The horizontal arm gives support mid-transfer, and the vertical arm gives a strong pull-up point once seated or standing. T-bar shower grab rail layouts vary depending on which side the user transfers from, so this is a configuration where a proper assessment of the person's dominant side and transfer pattern pays off before installation, not after.
A combined grab rail and shower rail suits someone who wants support and a height-adjustable hand shower without adding a second fitting to the wall. It's a strong default for retrofit jobs where minimising new wall penetrations is a priority, which is most of them.
Where a shower seat is part of the plan, the rail and seat brackets need to be assessed together, because their loads interact. A rail positioned to help someone lower onto a seat needs to be reachable from the seated position too, not just from standing.
Fixing and Load: Why a Decorative Rail Is Not a Grab Rail
Grab rails must fix into solid backing capable of resisting real pulling and leaning force, not just the substrate skin. This is the single most important safety factor in any retrofit, and it's set out in the intent of AS 1428.1, the Australian Standard covering design for access and mobility in buildings.
AS 1428.1 (Standards Australia) sets dimensional requirements for grab rails, including diameter, clearance from the wall, and mounting height ranges, and establishes that fixings must be adequate to sustain the loads a grab rail will realistically be subjected to in use. It does not sanction fixing a rail into tile and plasterboard alone. The practical implication for a retrofit job is simple: locate a stud or noggin, or install one, before the rail goes anywhere near the wall.
This is also where the difference between a grab rail and a decorative towel rail becomes a safety issue rather than a style choice. A towel rail is tested and fixed for light, static loads. A grab rail has to perform under a sudden, dynamic pull, exactly the scenario that occurs when someone loses their footing. Falls in the bathroom are consistently identified as a leading cause of injury among older Australians, which is precisely why the fixing detail behind the tile matters more than the finish in front of it.
For a builder or installer, this means checking fixing points with a stud finder or inspection where possible, using appropriate anchors matched to the wall type, and never relying on tile adhesive or grout as a load-bearing layer. For an OT specifying a job, it means asking the installer directly how the rail will be fixed, not just what rail is being fitted.
Fitting Without Re-Tiling
Most retrofit accessible shower kits can be installed without removing a single tile. The keys are minimising new penetrations, reusing the existing outlet position, and sealing every new penetration properly with silicone rated for wet areas.
Wherever the existing hand shower or mixer outlet is already positioned sensibly, reusing that point avoids replumbing and keeps the job to fixing and sealing only. Where a new grab rail needs to go somewhere the existing tile has no backing, the practical options are locating an existing stud nearby and adjusting rail position to suit, or accessing the wall cavity from an adjoining space (an unused cupboard, a services void) to add a noggin without disturbing the tiled face.
Every new screw penetration through tile needs to be sealed, both to stop water tracking behind the sheet and to stop the fixing loosening over time as the substrate gets wet and dries repeatedly. A neutral-cure, wet-area rated silicone around the rail base plate, not just at the screw heads, is the standard practice worth insisting on.
Consider a typical scenario: an OT refers a client for a bathroom safety upgrade after a near-fall. The existing shower is tiled, in good condition, with a stud wall behind it and the mixer outlet at a workable height. A builder locates two studs suitable for a combined grab rail and shower rail, confirms clearances around the existing hob, and fits the kit along with a hand shower and hose matched to the client's reach. With no re-tiling required and the outlet reused as-is, the job is realistically completed within a single day, and the bathroom is usable again that evening. That's the retrofit case working as intended: targeted, fast, and built on an assessment that happened before any hardware was ordered.
Finish, Hose Length and Matching Existing Tapware
Finish and fitting choices affect daily usability as much as safety. Hose length, handset shape and finish colour should match the user's reach, grip and the existing tapware, not just the aesthetic of the bathroom.
Hose length needs to reach comfortably from the sliding bracket's lowest position to a seated user's hand, with enough slack to move without pulling the handset off its cradle. Too short, and a seated user has to stretch. Too long, and the hose pools awkwardly and can become a trip or tangle hazard.
Handset shape matters for anyone with reduced grip strength. A handset with a wider barrel and a simple, low-force trigger or lever is generally easier to hold and operate one-handed than a slim, high-pressure trigger design. Accessible hand shower placement, meaning the height and angle of the sliding bracket relative to a seated or standing user, should be set during the assessment stage, not guessed at during installation.
On finish, matching the retrofit kit to existing tapware (chrome, matte black, brushed finishes) keeps the result looking like a considered upgrade rather than an obvious add-on. This matters for family members and aged care providers who want the bathroom to still feel like a normal, dignified space, not a clinical retrofit. Avail Designs' accessible shower rail systems are available in finishes designed to sit alongside standard tapware ranges, which is worth checking against the existing bathroom before ordering.
Why Retrofit Delays Rarely Come From the Kit Itself
In practice, the hardware is rarely what slows a retrofit down. The delay almost always comes from a mismatch between the assessment and the wall, discovered on installation day instead of before it.
The pattern is consistent: an OT or family member selects a rail position based on the user's height and reach, which is the right starting point, but nobody confirms whether that exact position lines up with solid backing until the installer is standing in the bathroom with a stud finder. If the ideal position lands between studs, the job either needs an on-the-spot compromise (rarely ideal for the user) or a return visit to add a noggin first.
The fix is simple and doesn't require new technology or a different kit: do the wall assessment before the rail position is finalised, not after. A five-minute check with a stud finder, or a look at the wall from an adjoining cavity if one exists, tells you whether the planned position is achievable as-is, needs minor adjustment, or needs backing added first. Builders who make this check standard practice on every retrofit quote consistently report fewer callbacks and no surprises on install day. It's a small procedural change with an outsized effect on whether a job finishes in one visit or two.
References
- Standards Australia, AS 1428.1: Design for access and mobility, Part 1: General requirements for access, New building work.
- Australian Institute of Health and Welfare (AIHW), Injury in Australia: falls, https://www.aihw.gov.au
- Livable Housing Australia, Livable Housing Design Guidelines, https://livablehousingaustralia.org.au
