T-Bar Shower Grab Rail Layouts: How to Plan a Safe, Compliant Shower

A T-bar shower grab rail layout combines a horizontal rail, positioned within the AS 1428.1 zone of roughly 800mm to 820mm above finished floor for the horizontal rail, with a vertical rail joining it or sitting up to 1900mm above floor level. The horizontal rail steadies lateral movement, while the vertical rail supports sit-to-stand transitions and stepping in, making it one of the most versatile accessible shower configurations available.

Bathroom falls are a serious problem for older Australians, and the shower is where the highest-risk moments happen. Wet, slippery surfaces combined with sit-to-stand movements create a window of instability that a well-placed rail can close. Getting the layout wrong, wrong height, wrong wall, wrong shape, means the rail sits there looking useful without actually doing its job.

This guide walks through what a T-bar layout is, where each leg should go, how high to mount it, how it compares to other rail configurations, and the fixing details that determine whether it holds under real load. It's written for homeowners planning ahead, carers organising a safer shower for a family member, and tradespeople or occupational therapists specifying hardware for a client.

Summary Table: T-Bar Layout at a Glance

Layout	Movement supported	Typical location	Best suited to
T-bar (vertical + horizontal)	Sit-to-stand, stepping in, lateral steadying	Entry wall, back wall, or beside the seat	Users who need support for both standing and steadying
Straight horizontal rail	Lateral steadying only	Side wall at hip to shoulder height	Users who are steady on their feet but want backup support
L-shape rail	Steadying plus limited sit-to-stand	Corner junctions	Users who need two support directions but not a full vertical run
Combined grab rail and shower rail	Steadying plus a sliding shower head holder	Back wall or side wall	Users who want support and an adjustable shower head fixed to the same rail

What a T-Bar Shower Grab Rail Layout Actually Is

A T-bar grab rail is a single fixture shaped like the letter T: one horizontal bar and one vertical bar meeting at a joint. The horizontal leg gives a hand hold for steadying side to side. The vertical leg gives something to pull up on or lower against when sitting or standing.

The reason this shape works so well in a shower is that it matches two distinct movements that happen in almost every wash. First, there's the moment of stepping over a hob or threshold, where a vertical hold gives something firm to grip while weight shifts. Second, there's the steadying needed while washing, rinsing, or reaching for a tap, where a horizontal hold under the hand works better because the arm stays at a natural angle.

A straight rail only covers one of these movements well. Mount it horizontally and it helps with steadying but does little for standing up from a shower seat. Mount it vertically and it helps with standing but gives no lateral support while washing. The T-bar covers both because it is, in effect, two rails fixed as one unit sharing a single set of wall fixings.

This matters for anyone specifying hardware for a client with mixed needs, which describes most ageing-in-place bathroom projects. A T-bar is rarely the wrong first choice when only one rail is going in.

Where the T-Bar Goes: Entry Wall, Back Wall, or Beside the Seat

The T-bar's position depends on where the user enters the shower and which side they lead with. There is no single correct wall. The layout should follow the person's actual movement path, not a generic diagram, because a rail on the wrong side forces an awkward reach that undermines the whole point of fitting one.

Three placements come up most often in practice.

Entry wall. If the user steps over a hob, kerb, or into a hobless shower recess, a T-bar near the entry gives something to hold during the step itself. The vertical leg should sit close to the leading hand as the user turns into the shower space. This is the most common placement in a small ensuite where there is only one usable wall near the entry.

Back wall. In a larger shower recess, a T-bar on the back wall supports washing and rinsing without crowding the entry. This placement suits users who are steady entering but want support while standing under the water or reaching for taps and a shower head.

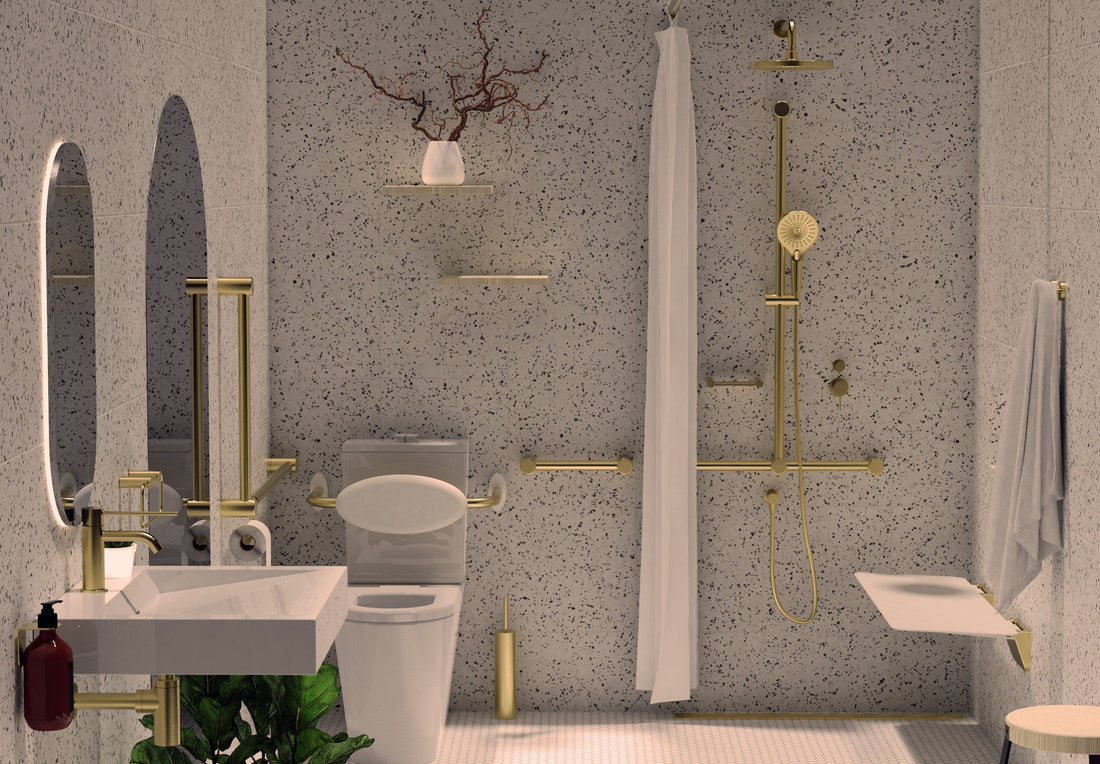

Beside the shower seat. Where a fold-down or fixed shower seat is fitted, the T-bar usually goes on the wall the user faces or the wall to their strong side, positioned so the vertical leg is within reach for pushing up to stand. This is the most common placement for carer-assisted showers, because it gives both the user and the carer a fixed point of leverage during the transfer.

For a user with a clear dominant side (following a stroke, for instance, or with one weaker leg), the rail should sit on the strong side, not the weak one. It sounds obvious once stated, but it is the single most common specification error we see corrected after the fact.

Height and Reach Guidance for Grab Rail Height in Australia

AS 1428.1, the Australian Standard for design for access and mobility, sets a general reference zone of roughly 800mm to 1900mm above finished floor level for grab rail height. This range is a planning guide for compliant public and accessible buildings, not a fixed rule for every home installation, and final height should always suit the individual using the rail.

Within that zone, the exact mounting height should be set against the specific user, not an average. A taller user or one who stands fully upright may sit toward the top of the range. A user who is seated for most of the shower, or who has a shorter reach, may need the horizontal leg lower in the range, closer to hip height when standing beside the seat.

The vertical leg's length matters as much as its position. It needs to span enough of the sit-to-stand motion that the hand can grip it low, near seated hip height, and slide or reposition up as the user rises. A vertical leg that is too short forces a regrip partway through standing, which is exactly the kind of instability the rail is meant to prevent.

When in doubt, and particularly for a specific individual rather than a general household fit-out, get an occupational therapist to confirm height and reach before fixing anything. AS 1428.1 gives the planning zone; it does not replace an assessment of the actual person using the rail.

T-Bar Versus Other Layouts: L-Shape, Straight, and Combined Rails

A T-bar suits users who need support for both standing and steadying, while an L-shape, straight rail, or combined grab-and-shower rail suits narrower, single-purpose needs. Choosing between them comes down to how many distinct movements the rail needs to support and how much wall space is available.

A straight horizontal rail is the simplest option and works well for users who are steady on their feet but want backup support while washing. It is a common choice in a family bathroom being adapted lightly for an ageing parent who visits, rather than for someone with a diagnosed mobility need.

An L-shape rail covers two directions of support at a corner junction, which suits a shower where the natural hand position falls right at a wall corner. It gives some sit-to-stand support through its vertical run but usually over a shorter length than a dedicated T-bar, so it suits lighter support needs rather than a full transfer.

A combined grab rail and shower rail integrates a sliding shower head holder onto the same fixture as the grab rail, so one wall fixing does double duty for support and shower head positioning. This suits bathrooms where wall space is tight and a separate shower head rail is not practical, and it is worth exploring in more detail if that flexibility matters more than a dedicated vertical leg for standing.

The T-bar sits above all three when the brief calls for genuine mixed support, standing, steadying, and stepping in, from one fixture. It uses more wall space and needs more precise placement, but it is doing more work for that space.

Fixing, Wall Structure, and Finish

A grab rail is only as strong as what it is fixed into, and tiles or plasterboard alone will never hold a rail safely under real body weight. Every T-bar needs solid backing, ideally a timber noggin or a purpose-built wall reinforcement plate, installed before the wall lining and waterproofing go in.

This is why layout planning should happen early in a bathroom renovation, well before tiling starts. Retrofitting backing into a finished wet-area wall usually means cutting into tiles and waterproofing membrane, which adds cost and risk of leaks if not resealed correctly. Builders and plumbers specifying a T-bar layout should mark rail positions on the frame before sheeting, not after.

Wet-area sealing matters just as much as the fixing itself. Every screw penetration through a waterproofed wall needs to be sealed to manufacturer or waterproofing membrane specifications, because a poorly sealed fixing point becomes a leak path straight into the wall cavity. This is a job for a licensed waterproofer or plumber, not something to improvise on site.

On finish, a T-bar does not have to look clinical. Grab rails are available in a range of finishes that suit contemporary bathroom design as well as older-style fit-outs, so matching the rail to tapware or other fittings is realistic without giving up on grip texture or load rating. The grip surface matters more than the finish colour: a rail that looks good but is smooth and slippery when wet defeats its own purpose.

Common Layout Mistakes That Undermine a T-Bar Rail

The most common mistakes are mounting the rail too high, positioning it behind the water stream, and choosing it for appearance rather than function. Each one turns a well-intentioned installation into a rail that looks compliant but fails the person using it.

Mounted too high. A rail set at the top of, or above, the AS 1428.1 zone without reference to the actual user forces an upward reach at the exact moment stability is needed most. This happens when a rail is installed to a generic measurement rather than to the person.

Positioned behind the water stream. A rail mounted directly in the spray path becomes wet and slick exactly when it is needed, and a hand reaching for it gets an unexpected faceful of water in the process. Where possible, the horizontal leg should sit slightly outside the main spray zone, or the shower head position should be adjusted to suit the rail rather than the other way around.

Chosen for looks over grip. A polished, smooth-finish rail can look sleek in a display but becomes genuinely dangerous when wet and soapy hands try to grip it. Texture and diameter matter more than finish for anyone with reduced grip strength.

Wrong side for the user. As covered above, a rail fitted on the wrong wall for a user's dominant side or leading leg gets used less than a rail on the correct side, or gets used with an awkward reach that partly defeats the purpose.

All four mistakes share a root cause: the layout was planned around the wall, not around the person who will use it.

The Layout Decision Most People Get Backwards

Most planning guides start with the wall and work outward: which wall is biggest, which wall is closest to the entry, which wall has the fewest obstructions. That is the wrong starting point. The starting point should always be the person's actual movement, watched or described in detail, then matched to a wall that supports it.

Consider a scenario common in carer-assisted showers: a carer supports a family member from behind or beside during the sit-to-stand transition from a shower seat. The carer is not the one gripping the rail, the person being supported is, and they typically use the vertical leg with one hand while the carer supports the other side of the body. If the vertical leg is on the wrong side, or too short to bridge the seated-to-standing reach, the carer ends up bearing weight that the rail should have taken. That is a safety issue for both people in the room, not just the person showering.

Our experience specifying grab rail hardware for Australian bathrooms is that the layout question gets asked too late, usually after tiling is finished and the only remaining option is to fix into whatever backing happens to exist. A five-minute conversation about which side a person leans on, whether they use a shower seat, and whether a carer is involved changes the whole layout before a single tile goes down. Getting a rail onto the plan at the same stage as the shower base and tapware, rather than as an afterthought, is the difference between a rail that gets used every day and one that ends up decorative.
