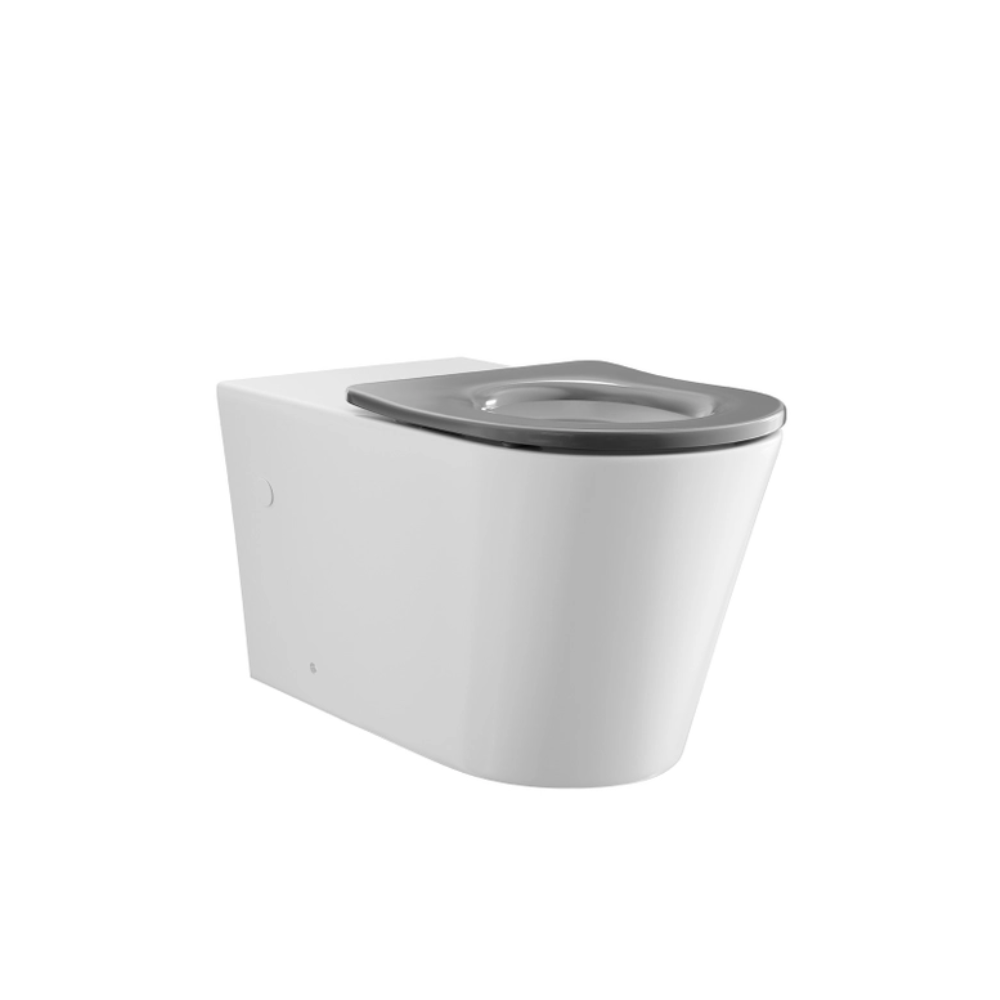

Avail Accessible Toilet Pan 800mm For In Wall Cistern with Grey Seat DDA AS1428.1 - ATPDDAG1

i. Meets all AS1428.1 Section 12 Compliance requirements for DDA Accessible Toilets
ii. 800mm to front edge 460mm Seat Height
iii. Seat coloured for minimum 30% contrast against the toilet pan and cistern (suitable for all wall and floor colours)

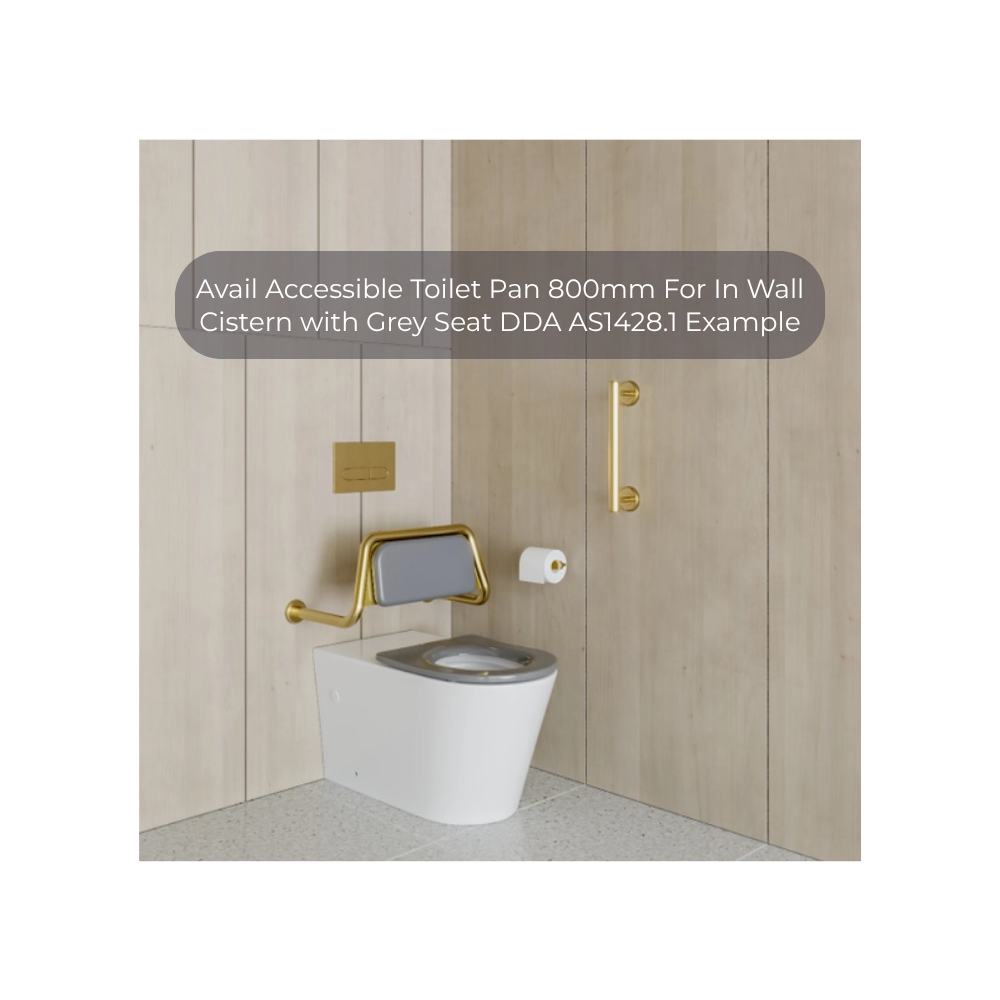

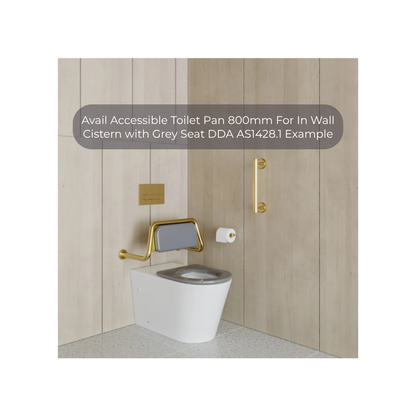

iv. Additional Products required for AS1428.1-2021 Accessible Toilet Compliance (see install diagram for required install locations):

1. Raised Flush Buttons for In Wall Cistern: Toilet Raised Flush Button Panel AS1428.1 DDA Accessible Pneumatic for G30035 Cistern Brushed Nickel - NRCRPL002BN
2. In Wall Cistern Pneumatic: In Wall Cistern Concealed for NRCRPL002 AS1428 Pneumatic Raised Flush Buttons - G30035
3. Toilet Backrest: Calibre Mecca DDA Accessible Toilet Backrest Removable Brushed Nickel - NRCR0001BN
4. Accessible Toilet Side Grab Rail 90 or 45 degree: Calibre Mecca 32mm DDA Accessible Grab Rail Set 90 Degree 600x1000mm Brushed Nickel - NRCR3290BN or Calibre Mecca 32mm DDA Accessible Toilet 90 Degree Grab Rail 600x1000mm Brushed Nickel - NRCR3290eBN
5. Accessible Toilet Rear Grab Rail minimum 300mm length: Calibre Mecca 32mm Grab Rail 300mm Brushed Nickel - NRCR3212BN
6. Toilet Roll Holder Single or Double (other options are available): Calibre Mecca Add On Toilet Roll Holder Brushed Nickel - NRCR3286TBN or Mecca Double Toilet Roll Holder Brushed Nickel - NR1986dBN

• Versatile and Adaptable: Ideal for a wide range of settings, including commercial buildings, public spaces, and residential properties.
• Our accessible toilets can be customized to meet specific needs and seamlessly integrate into any environment.
• Highest Quality
• Vitreous China Construction
• Rimless Flushing Technology
• Heavy Duty Duraplast
• Quick Release
• Soft Close Seat
• WELS Registration No. L08200
• WELS Licence No. 0422
• Average flush: 3.5 Litres, Full flush: 4.5L, Half flush: 3.1L
• Star Rating: WELS 4 Star
• Warranty: 7 year replacement product or parts*:1 year labour
  *Excludes valves, seats, button assembly, links, flush pipes & other internal components which carry a 1 year replacement warranty
• Formerly Code: HDC692-HEBTG
• Standard P Trap
• Supplied with S-trap adaptor to suit 130-260mm Set Out.
• Will Suit 190-360mm Set Out with S-TRAP2 (sold separately)

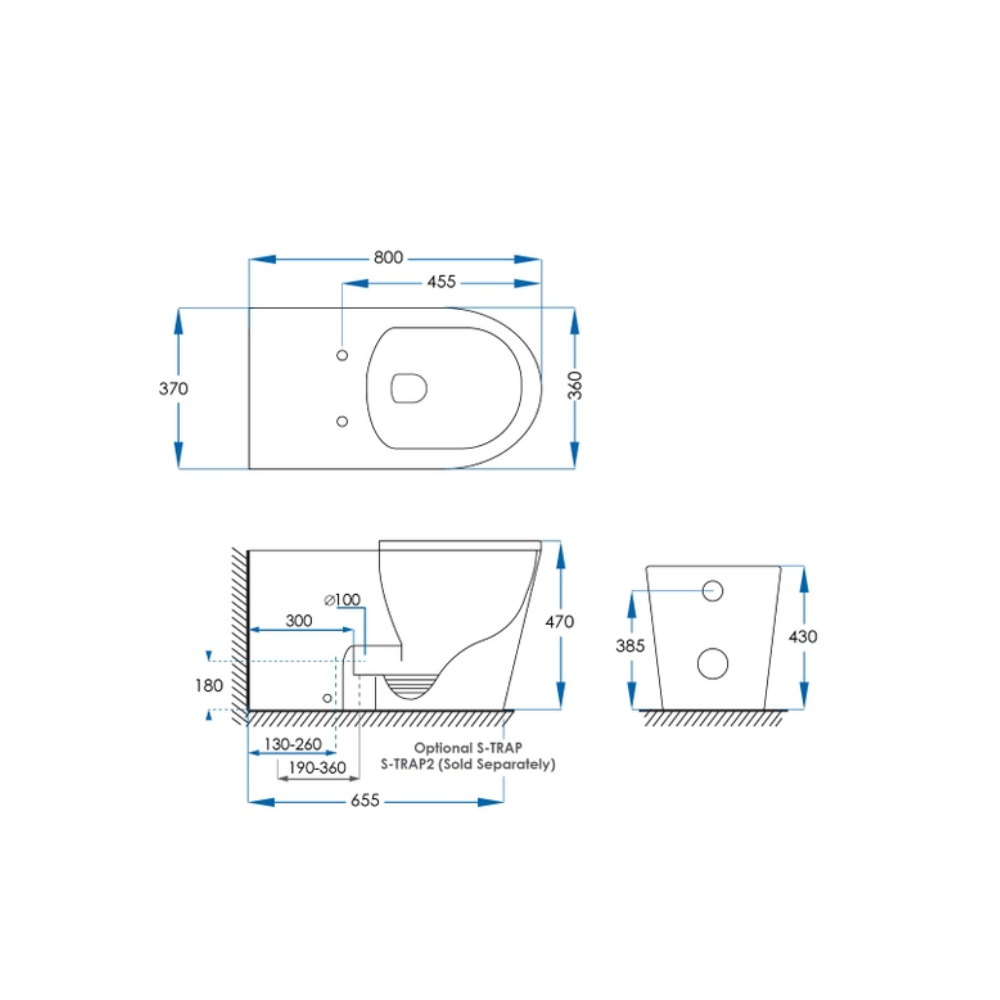

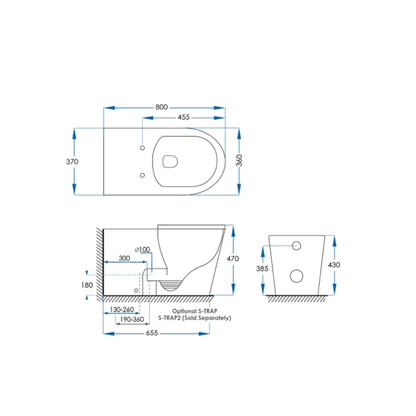

• Size: 360mm x 800mm x 430mm
