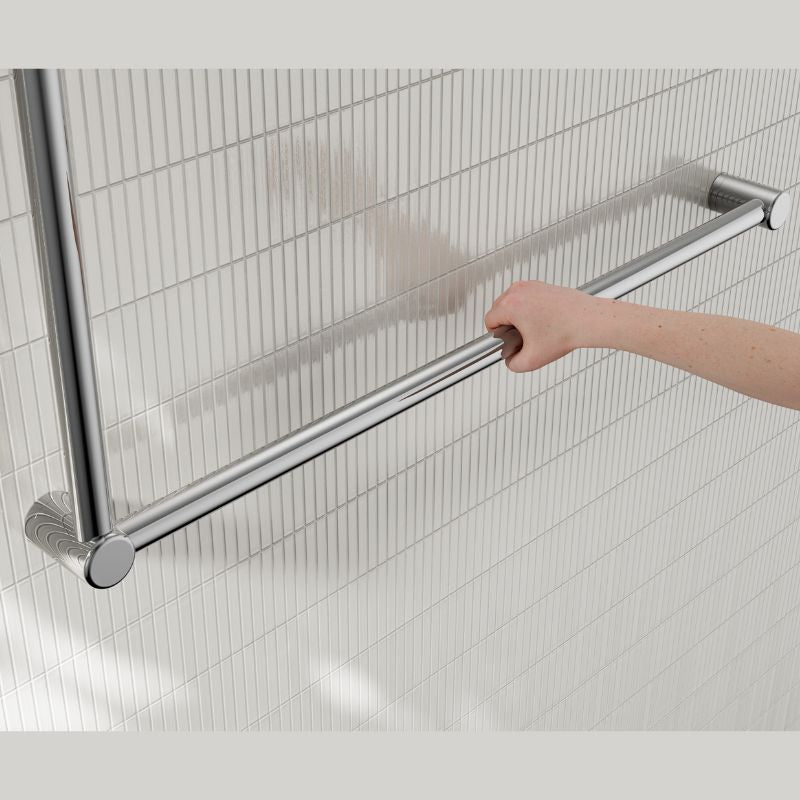

Calibre Mecca 32mm DDA Accessible Grab Rail Set 90 Degree 600x1000mm Chrome - NRCR3290CH

• 600x1000 compliant grab rail for AS1428.1 Wheelchair Accessible/DDA/PWD/Disabled Toilets and Bathrooms with standard wall mounted toilet cisterns
• Material: Stainless Steel
• Australian Owned and Designed
• Can be mounted on left or right hand side
• Optional add on toilet roll holder attaches to the 32mm rail
• Available in over 7 finishes including Living Brass, Chrome, Matt Black, Gunmetal, Brushed Nickel, Bronze, Gold
• Modular design, the rail to be mounted horizontally, vertically or at any angle and cut down to suit your bathroom
• 150 kg capacity for all 32mm diameter calibre grab rails
• Calibre Mecca 32mm diameter rails are approved for standard AS1428.1 requirements in DDA bathrooms
• Can be used by the toilet or in the shower to help get on and off the toilet or from a shower seat

Installation Instruction:

1. Locate wall studs, install into at least one stud.
Place wall seal/mounting bracket on wall at correct height over centre of stud and mark hole positions on wall. (minimum 2 supplied screws per bracket).
Tip: Rail height is 790mm above the ground.

2. Drill pilot holes into wall stud approximately 60mm deep to suit mounting screws (and wall plugs if required).
Tip:3mm hole for screws into timber or 8mm hole for wall plugs.

3. Apply small amount of silicon to mounting bracket and wall in and around the screw holes.

4. Install mounting brackets by screwing onto wall.
Tip: Use appropriate mounting screws for the wall stud material, supplied screws are for timber wall studs.

5. Slide rail tubes into end brackets and push onto wall brackets.
Tip: Rail length can be cut down to a smaller size, simply use an angle grinder, hacksaw or pipe cutter then deburr the end with a file or grinder and reinsert into the end bracket.

6. Tighten grub screws with allen key.
Tip: If rail rattles, loosen end bracket, twist slightly and tighten.

7. Finished.
