Calibre Mecca 32mm DDA Accessible Toilet 90 Degree Grab Rail 600x1000mm With Toilet Roll Holder Gun Metal - NRCR3290ehGM

• 600x1000 compliant grab rail for AS1428.1 Wheelchair Accessible/DDA/PWD/Disabled Toilets and Bathrooms with standard wall mounted toilet cisterns
• Adjustable mid bracket to ensure secure installation into existing wall studs
• 32mm diameter for a comfortable grip.
• Supports up to 150kg grab force for enhanced safety.
• Complies with Australian AS 1428.1 standards for accessibility.
• Constructed from high-quality stainless steel for durability.
• Corrosion-resistant finish for long-lasting performance.
• Available in 6 premium finishes.

Installation Instruction:

1. Unscrew the 3 mounting brackets from the two grab bars and support ring using an Allen key.

2. Locate wall studs, install into at least one stud.

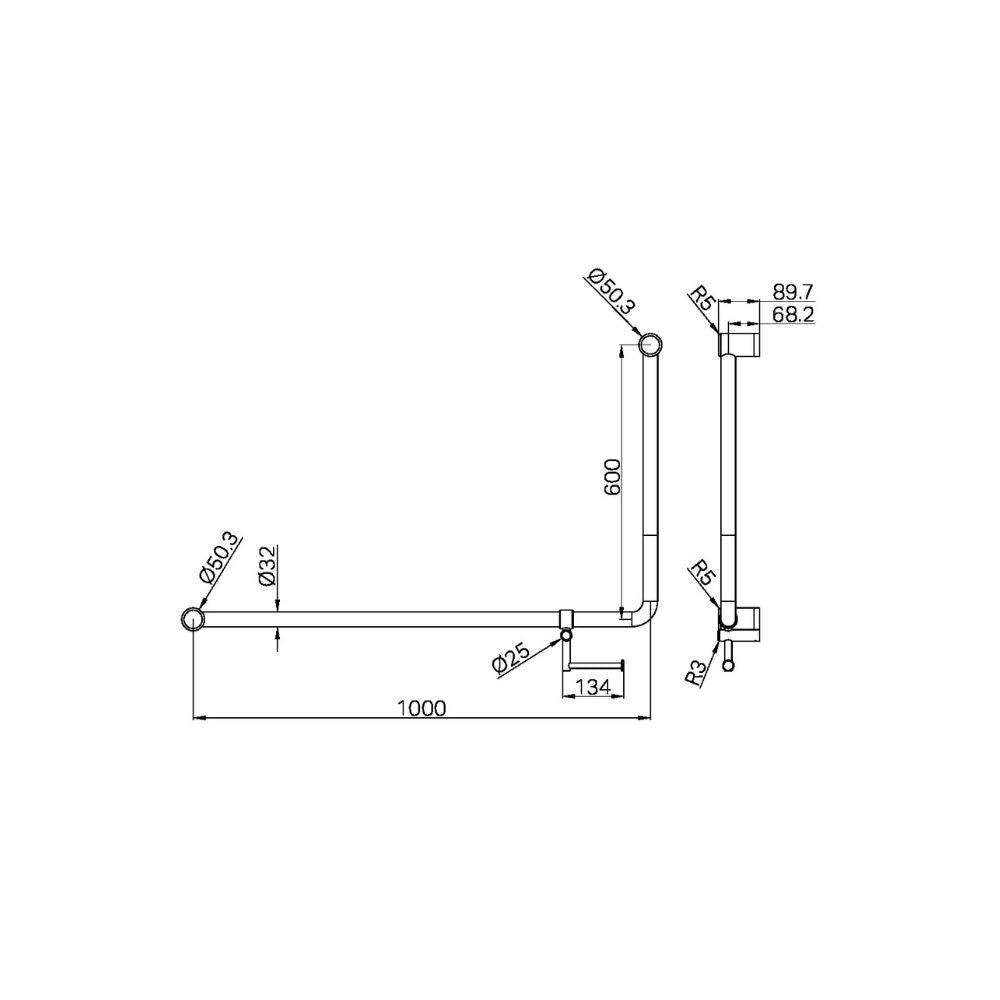

Place wall seal/mounting bracket on wall at correct height over centre of stud and mark hole positions on wall refer above picture. (minimum 2 supplied screws per bracket).
Tip: Rail height is 790mm above the ground.

3. Drill pilot holes into wall stud approximately 60mm deep to suit mounting screws (and expansion plug if required).
Tip:3mm hole for screw into timber or 8mm hole for expansion plug.

4. Apply small amount of silicon to mounting brackets and wall in and around the screw holes.

5. Insert the expansion plugs into the drilled holes using a hammer. Secure the three brackets firmly with expansion screws.
Tip: Use appropriate mounting screws for the wall stud material, supplied screws are for timber wall studs.

6. Connect the Vertical Grab Bar to the Connecting Elbow with the red sticker on one end.

7. Disassemble the support ring.

8. Connect the vertical rod, the holder rod and the support ring by a screw rod. Do not over tighten the screw rod.

9. Slide the support ring onto the horizontal grab bar, and then connect the horizontal grab bar with the connecting elbow.

10. Align the grab rail with the three brackets and screw it firmly using Allen key.
